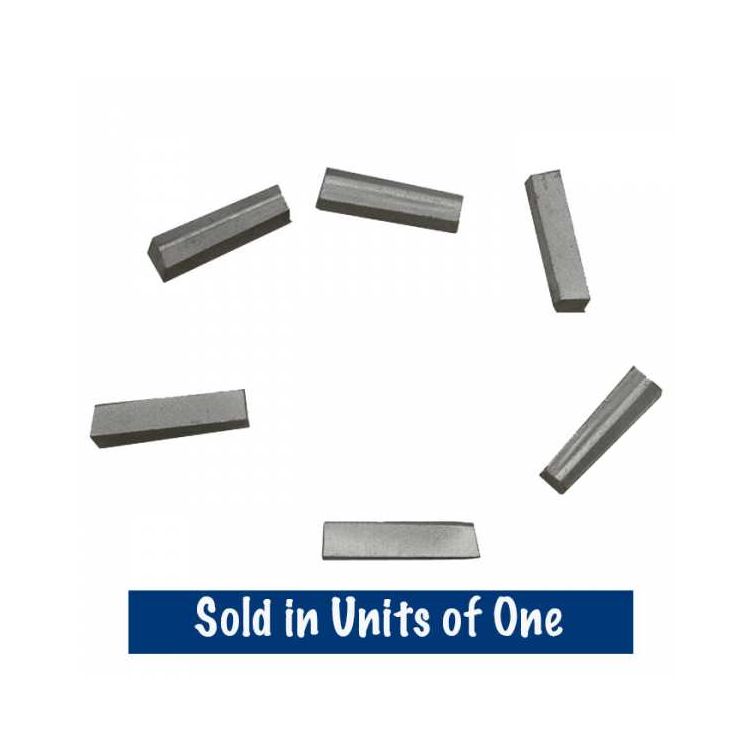

Magnum ICJ201 Carbide Cut-Off Replacement Insert for CS9 20mm Set

Eliminating the performance loss of dull parting tools, the Magnum ICJ201 Cut-Off Insert is a precision-manufactured replacement tip designed specifically for 20 mm shank indexable systems. Engineered from high-density carbide, this insert provides the extreme hardness and red-hardness required to maintain a sharp cutting edge when plunging through carbon steel and alloy workpieces. The ICJ201 geometry is optimized for stable chip control, preventing the material buildup that leads to tool deflection or breakage in high-torque parting cycles. It serves as a direct fit for the Magnum CS9 20MM Cutter Set, allowing machinists to restore high-efficiency material separation with minimal downtime and without the need for manual tool grinding.

Features

• High-Density Carbide Substrate - Offers superior abrasive wear resistance for long-term production use.
• Precision Chip Breaker - Optimized geometry ensures consistent material evacuation during deep parting.
• Secure Pocket Integration - Specifically sized for a perfect, vibration-free fit in CS9 20mm tool holders.
• Thermal Stability - Retains cutting edge integrity even under the intense heat of continuous lathe work.

Specifications

• Insert Type: Cut-Off/Parting
• Material: Industrial Grade Carbide
• Compatibility: CS9 20MM Cutter Set
• Application: External Parting
• Supplier MPN: J201
• KMS Product Code: MAG-ICJ201
