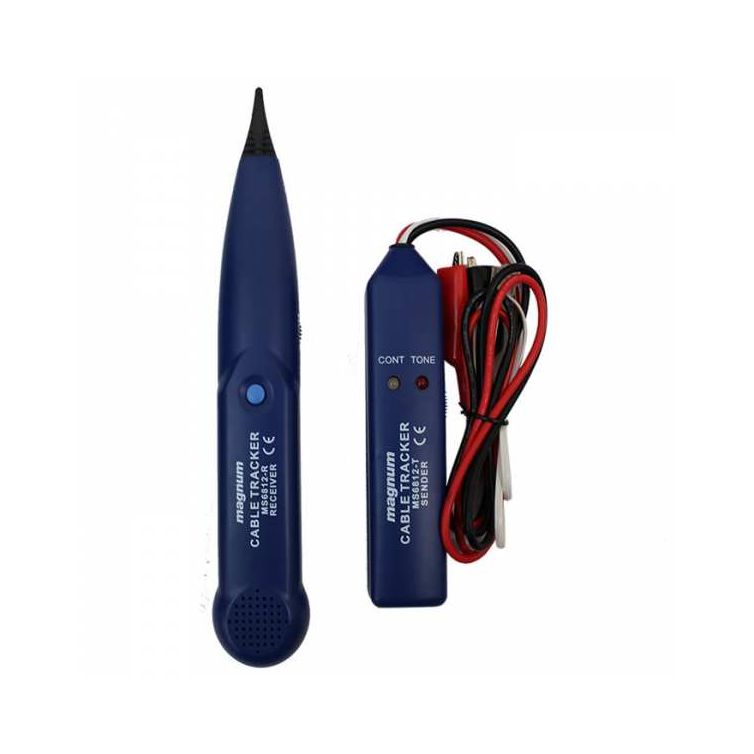

Magnum Cable Tracker - MS6812

Trace and identify specific non-energized wires within dense bundles without stripping insulation. The Magnum MS6812 sends an audible tone down the line, allowing technicians to locate faults in data, alarm, or telephone networks. The system confirms continuity and line status rapidly.

Features

• Non-Destructive Tracking - Identifies cables without requiring insulation removal.
• Multi-Cable Compatibility - Works with telephone, coax, data, and thermostat wiring.
• Included Terminals - Sender unit features two alligator clips and an RJ11 plug for direct line connection.
• Dual Tone Frequencies - Outputs a single 1500Hz or alternating 1300-1500Hz square waveform.

Specifications

• Send Tone Frequency: 1.5 kHz
• Receive Frequency Range: 100 Hz to 300 kHz
• Supplier Part Number: MS6812
• KMS Product Code: MAG-MS6812

Includes

• Sender Unit (MS6812-T)
• Receiver Unit (MS6812-R)
• (2) 9V Batteries

Common Shop Applications

• Identifying bundled network cables
• Tracing residential alarm lines
• Testing telephone line continuity

Recommended Shop Add-Ons

• Wire Strippers
• Cat5e Cable

Frequently Asked Questions

Q: Can this be used on live AC power circuits? A: No, this tracker is designed strictly for non-energized communication and low-voltage wiring.

Q: Does it require contact with the bare wire to hear the tone? A: The receiver detects the tone signal through the insulation without requiring bare metal contact.
