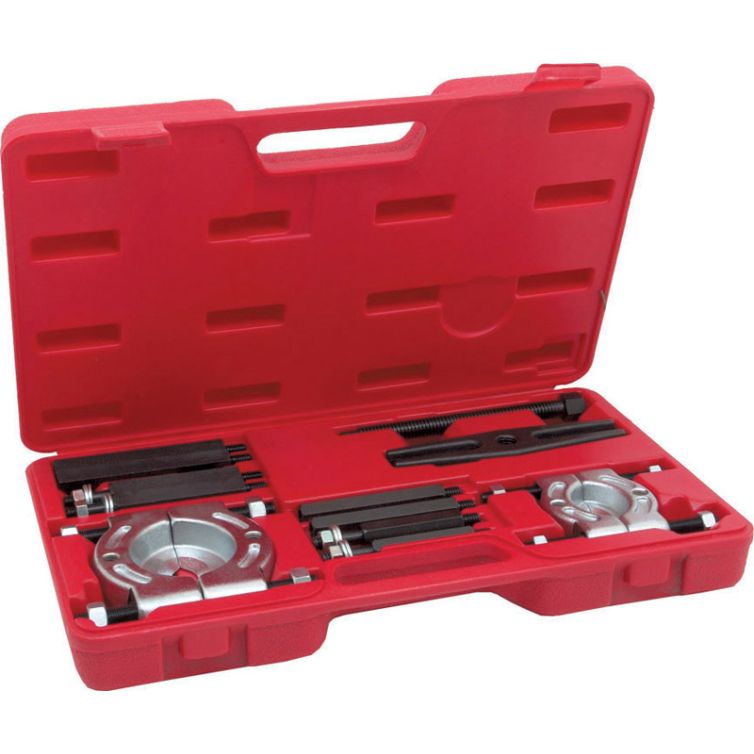

Magnum H-Type Beam Bearing Separator Kit (1075)

Remove stubborn, flush-mounted bearings without destroying the surrounding shaft or damaging delicate transmission housings. This bearing separator kit gets behind tightly seated components where standard puller jaws simply cannot reach. By utilizing an H-type beam and heavy-duty forcing bolts, it provides even, destructive-free pulling force across the entire bearing assembly, saving mechanics hours of frustration when overhauling heavy gearboxes or automotive differentials.

Features

• Splitter design - slips behind flush bearings and gears where standard hooked puller jaws cannot secure a safe grip.
• H-type beam - provides a stable, centralized pulling force that draws the bearing off the shaft evenly without binding.
• Complete extraction setup - includes all necessary forcing screws and pulling bolts for an immediate, ready-to-use system.

Specifications

• Type: H-Beam Bearing Separator
• Dimensions: 10.0" x 6.0" x 2.5" (254 x 152 x 64 mm)
• Weight: 4.8 lbs (2.17 kg)
• Supplier Part Number: 1075
• KMS Product Code: MAG-1075

Common Shop Applications

• Extracting pinion bearings from automotive differentials.
• Pulling flush gears off heavy transmission shafts.
• Removing pressed-on pulleys from electric motors.

Recommended Shop Add-Ons

• Don't forget: Magnum Penetrating Oil – essential for soaking seized bearings before applying maximum pulling force.
• Most transmission rebuilders also grab: Magnum Mechanics Gloves – protects hands from sharp gear teeth and slipping tools during heavy extraction.

Frequently Asked Questions

Can I use an impact wrench on the main forcing screw?

It is strictly recommended to use hand tools like a socket and ratchet to apply smooth, even pressure. Impact wrenches can damage the threads and bind the bearing.

Does this kit work on large industrial bearings?

It is sized primarily for automotive and light industrial applications. Always check the jaw spread capacity against your specific bearing diameter.
