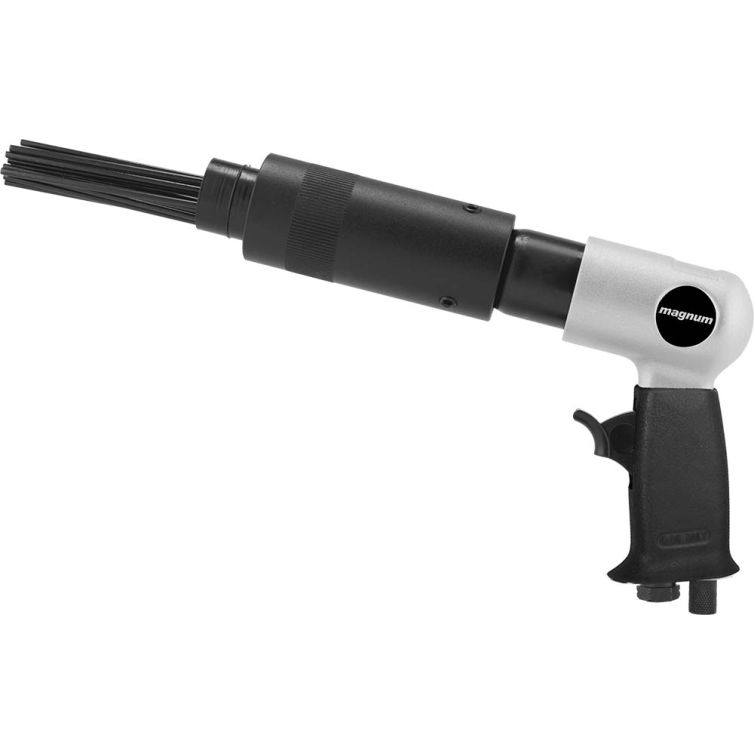

Magnum Air Needle Scaler - NS100

Remove heavy rust, scale, and welding slag from irregular steel surfaces. The Magnum NS100 utilizes rapid needle impacts to clean metal prior to painting or structural inspection.

Features

• Hardened Needles - Equipped with nineteen 1/8" precision heat-treated steel needles.
• High Impact Rate - Delivers 4,500 blows per minute (BPM) for aggressive material removal.
• Pneumatic Power - Operates effectively at 90 PSI.

Specifications

• Blows Per Minute: 4,500 BPM
• Air Consumption: 2.8 CFM (79.2 L/min)
• Operating Pressure: 90 PSI (6.3 bar)
• Air Inlet: 1/4" NPT
• Recommended Hose Size: 3/8"
• Weight: 4.33 lbs (1.97 kg)
• Supplier Part Number: RP7658
• KMS Product Code: MAG-NS100

Common Shop Applications

• Scaling rust off heavy equipment frames.
• Chipping slag from multi-pass structural welds.
• Removing old paint from diamond plate or textured surfaces.

Recommended Shop Add-Ons

• Keep internal seals maintained with Air Tool Oil
• Hook up quickly using a 1/4 NPT Air Fittings

Frequently Asked Questions

Q: Are the needles replaceable? A: Yes, the 1/8" steel needles can be replaced when they eventually wear down or break from extended use.

Q: Does this tool require lubrication? A: Yes, add a few drops of pneumatic air tool oil into the air inlet daily before use to prevent internal motor wear.
