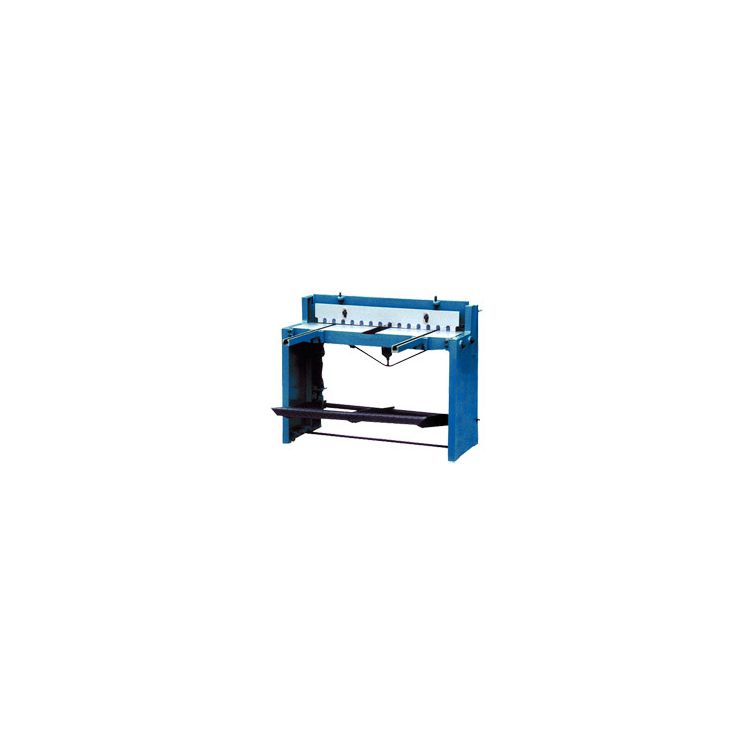

Magnum 52" x 16 Gauge Sheet Metal Foot Shear (FS1652)

Shear full-sized sheets with precision and zero electrical power required. The FS1652 (Magnum FS1652) features a massive 52-inch bed and high-carbon chrome steel blades, utilizing a foot-pedal design that keeps both hands free to position the material accurately.

Features

• Heavy Steel Structure - Fully welded frame ensures maximum strength and consistent cuts across the full 52-inch width.
• Adjustable Foot Pedal - Can be extended or shortened to suit the operator's height and leverage needs.
• Precision Back Gauge - 700mm range allows for highly repeatable production cuts in high-volume shops.

Specifications

• Max Shearing Width: 52" (1320 mm)
• Max Shearing Thickness: 16 Ga (1.5 mm)
• Back Gauge Range: 0-700 mm
• Weight: 1,000 lbs (454 kg)
• Packing Size: 66.1" x 29.9" x 47.2" (168 x 76 x 120 cm)
• Supplier Part Number: Q01-1.5X1320
• KMS Product Code: MAG-FS1652

Common Shop Applications

• Sizing large aluminum or mild steel body panels
• Repetitive shearing of HVAC duct components
• Precision industrial prototype fabrication

Includes

• Back Gauge Assembly
• Full-Width Foot Pedal
• High-Carbon Steel Blades

Recommended Shop Add-Ons

• Don't forget: Sheet Metal Gloves – Protect your hands from fresh-cut edges on large panels.
• Our Fabrication experts suggest: Front Gauge – Speeds up loading for repetitive small-strip shearing.

Frequently Asked Questions

Q: Can the blades be flipped for a fresh edge? A: Yes, these blades are four-sided, allowing you to rotate them to a new edge before needing professional sharpening.

Q: Is this shear suitable for stainless steel? A: While rated for 16-gauge mild steel, it is recommended to shear 20-gauge or thinner for stainless to prevent excessive blade wear.
