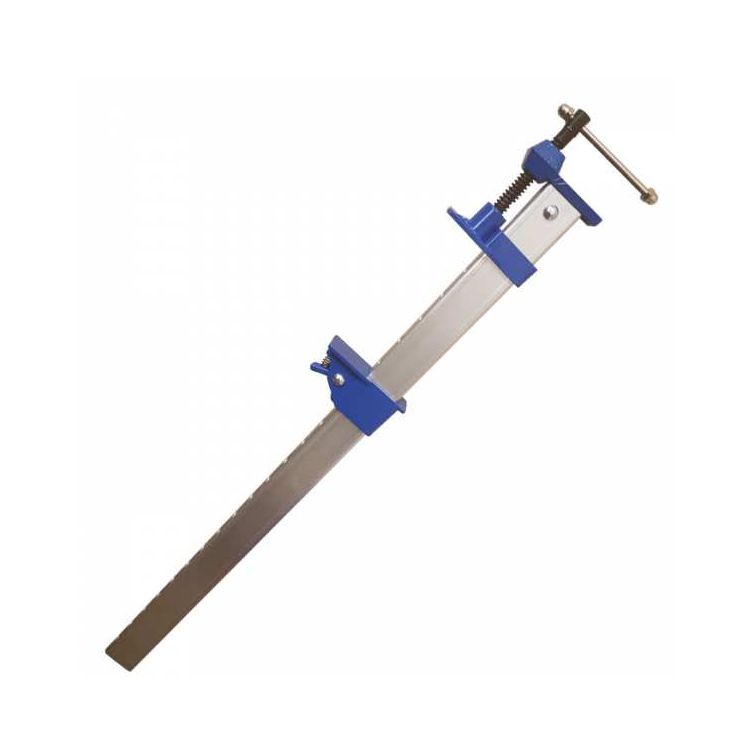

Magnum ALB36 36" Aluminum Bar Clamp - 32-5/8" Capacity - 1-5/8" Depth

The Magnum ALB36 36-Inch Aluminum Bar Clamp delivers reliable clamping pressure for medium to large woodworking tasks. Its rigid torsion-box style bars are designed to stay straight under load, ensuring that your workpieces remain square and secure. With a spring-loaded detent action on the fixed jaw, adjustments are fast and positive. The sliding jaws are engineered to wrap entirely around the four-sided bar, which eliminates the risk of the jaw faces lifting or twisting during application. This clamp combines the light weight of aluminum with the structural integrity needed for precision joinery.

Features

• Rigid torsion-box style bars prevent bending and twisting during use
• Spring-loaded detent action ensures quick and secure fixed jaw adjustments
• Sliding jaws wrap completely around the bar for stable pressure distribution
• Jaw faces maintain alignment without lifting under load
• Durable and lightweight aluminum construction

Specifications

• Capacity: 32-5/8" (828.7 mm)
• Throat Depth: 1-5/8" (41.3 mm)
• Bar Length: 36-5/8" (930.3 mm)
• Overall Size: 38.2" x 4" x 1.6" (970.3 mm x 101.6 mm x 40.6 mm)
• Net Weight: 1.78 lbs (0.806 kg)
• Material: Aluminum
