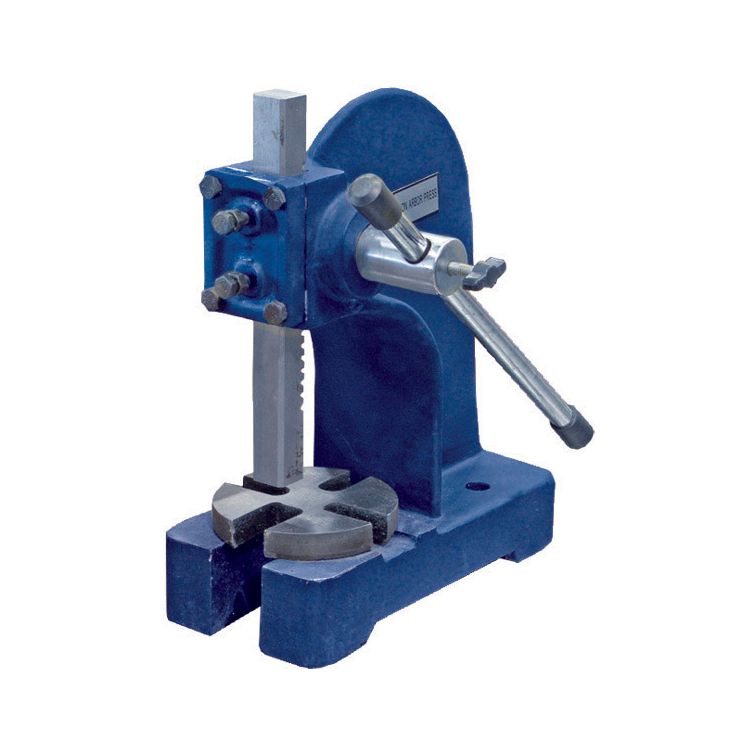

Magnum 3.0 Ton Manual Precision Arbor Press (AP3)

This 3-ton heavyweight is built for the professional fabrication shop requiring maximum force and clearance. The Magnum MAG-AP3 offers a significant 11.2" work height, accommodating larger shafts and bulkier assemblies. Use it for heavy-duty broaching, bending, and high-interference fits where smaller presses fail.

Features

• Industrial steel body - designed for maximum durability and minimal deflection under full 6,000 lb loads.
• Extra-large ram - provides a larger contact area for stable pressing of large bushings.
• Integrated anvil - four machined positions allow for quick setup changes on diverse workpieces.

Specifications

• Capacity: 3.0 Ton
• Max Work Height: 11.2" (285 mm)
• Ram Square: 1.5" x 1.5" (38 x 38 mm)
• Table Diameter: 7.3" (185 mm)
• Base Dimensions: 17.9" x 11.8" (455 x 300 mm)
• Overall Height: 24.2" (615 mm)
• Net Weight: 99 lbs (45 kg)
• Supplier Part Number: 376504
• KMS Product Code: MAG-AP3

Common Shop Applications

• Installing heavy-duty industrial bearings and sleeves.
• Straightening bent steel shafts or plates.

Recommended Shop Add-Ons

• Don't forget: Press Pin Kit - gives you the right size adapter for any diameter shaft.
• Our fabrication experts suggest: Anti-Seize Lubricant - prevents galling when pressing tight-tolerance steel parts.

Q: Is this press heavy enough to stay put? A: At nearly 100 lbs, it is very stable, but we strongly recommend bolting it down for safety at full 3-ton capacity.

Q: Can I use this for punching holes? A: With the appropriate die and punch set, it can be used for light-gauge hole punching.
