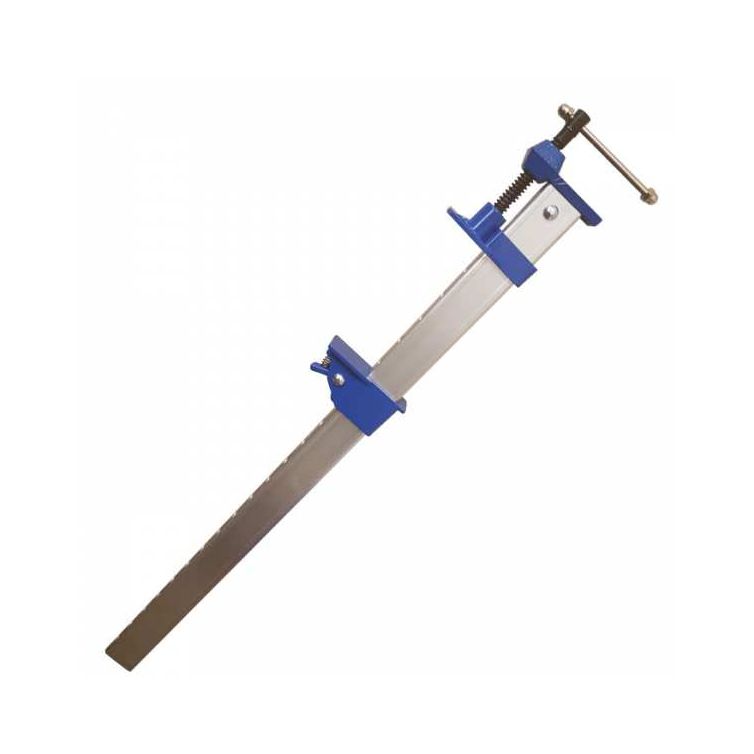

Magnum ALB24 24" Aluminum Bar Clamp - 20" Capacity - 1-5/8" Throat Depth

The Magnum ALB24 24-Inch Aluminum Bar Clamp is engineered for lightweight durability, making it an essential tool for woodworking and assembly projects. Constructed with rigid torsion-box style bars, this clamp maintains in-line pressure without bending or twisting, ensuring precise results every time. The fixed jaw features a simple spring-loaded detent action for quick and secure adjustments. Additionally, the sliding jaws wrap completely around the four-sided bar, preventing any lifting or twisting of the jaw faces as pressure is applied. Ideally suited for gluing panels or assembling frames, this clamp offers consistent performance in a manageable package.

Features

• Rigid torsion-box style bars allow for straight clamping pressure without bending
• Simple spring-loaded detent action on the fixed jaw provides quick adjustments
• Sliding jaws wrap around the four-sided bar to prevent lifting or twisting
• Jaw faces remain flat and secure as pressure is applied
• Lightweight aluminum construction for easy handling

Specifications

• Capacity: 20" (508 mm)
• Throat Depth: 1-5/8" (41.3 mm)
• Bar Length: 24" (609.6 mm)
• Overall Size: 26" x 4" x 1.6" (660.4 mm x 101.6 mm x 40.6 mm)
• Net Weight: 1.54 lbs (0.7 kg)
• Material: Aluminum
