Magnum 180A 240V MIG Welder (WE3218)

Take on heavy-duty fabrication and structural repairs with a machine built to push serious wire. Running on 240V shop power, this 180A MIG welder pushes deep penetration into quarter-inch plate while maintaining a stable, spatter-free arc. It features a heavy-duty drive roll system that feeds wire consistently all day, keeping the operator under the hood instead of fighting bird's nests.

Features

• 180-amp maximum output - provides enough heat to burn into 1/4-inch and 5/16-inch steel plate.
• Cast aluminum wire drive - prevents slipping and wire feeding jams during critical welds.
• Multi-step voltage selection - simplifies setup so operators can get to work faster.

Common Shop Applications

• Trailer fabrication and heavy frame modifications.
• Structural steel shop work.
• Heavy equipment bucket and blade hardfacing.

Specifications

• Output Range: 30-180A
• Input Power: 240V
• Dimensions: 22 x 11 x 16 in (55.8 x 27.9 x 40.6 cm)
• Weight: 72 lbs (32.6 kg)
• Supplier Part Number: WE3218
• KMS Product Code: MAG-WE3218

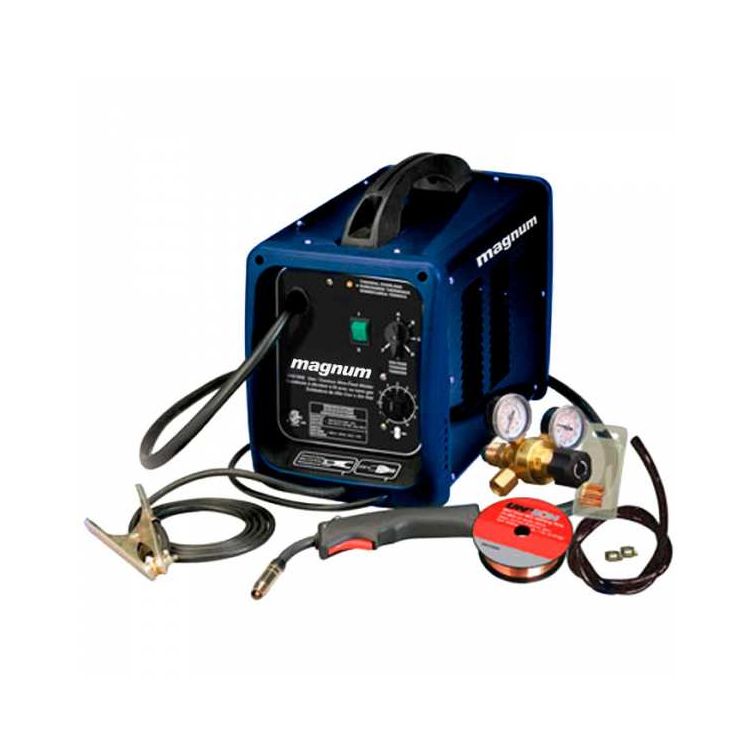

Includes

• 180A MIG Welder
• Heavy-duty MIG torch
• Ground clamp with high-flex cable
• Dual-gauge gas regulator

Compatibility

• Fits standard 10 lb and 33 lb wire spools
• Compatible with Tweco style tips and nozzles

Recommended Shop Add-Ons

• Most professional welders also grab: Magnum SPOOLGUN - allows for high-quality aluminum welding with this machine.
• Don't forget: 0.035 MIG Wire - the standard choice for structural and plate steel welding.
• Our fabrication experts suggest: Anti-Spatter Spray - keeps nozzles clean and reduces cleanup time on finished projects.

Frequently Asked Questions

• What plug does it come with? - It includes a standard NEMA 6-50P 240V welding plug.
• Can I run this on a generator? - Yes, requires a minimum 7,000-watt running generator with a 240V receptacle.
