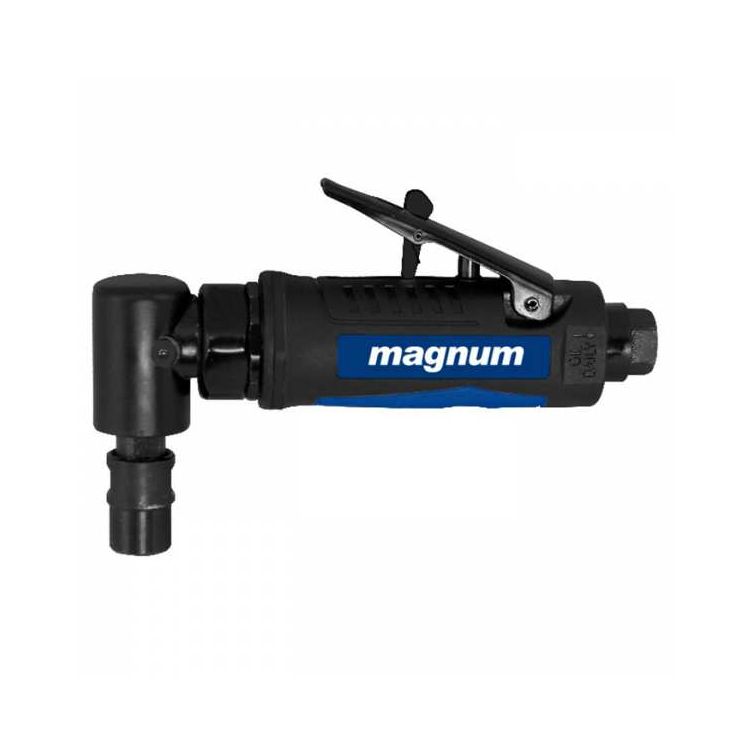

Magnum 1/4 Inch Angle Air Die Grinder (DG205)
Edge-breaking, deburring, and porting in tight spaces is much easier when the tool is built for the job. The Magnum DG205 1/4-inch angle air die grinder offers excellent maneuverability thanks to its compact, lightweight aluminum housing. The precision machined gears inside the 90-degree head provide smooth power transfer from the 22,000 RPM motor, allowing you to control the cut easily when cleaning up welds or finishing custom fabricated brackets.
Features
- 90-degree angle head - allows access into tight spaces where straight grinders cannot reach.
- Safety lock-off lever - prevents accidental starts when setting the tool down on a crowded workbench.
- Built-in power regulator - gives you precise control over tool speed depending on the material and accessory.
- Front exhaust - blows metal shavings and dust away from the operator during grinding.
Common Shop Applications
- Porting and polishing intake manifolds
- Deburring sharp edges on custom brackets
- Cleaning up tight welds in structural fabrication
Specifications
- Collet size: 1/4 Inch (6.35 mm)
- Free speed: 22,000 RPM
- Average air consumption: 4 CFM (113.2 L/min)
- Air inlet: 1/4 Inch (6.35 mm) NPT
- Hose size: 3/8 Inch (9.5 mm)
- Length: 6.89 Inch (175 mm)
- Tool weight: 0.99 lbs (0.45 kg)
- Supplier Part Number: RP17315
- KMS Product Code: MAG-DG205
Includes
- (1) 1/4 Inch angle die grinder
- (2) Collet wrenches
Recommended Shop Add-Ons
- Our fabrication experts suggest: 1/4 Inch Shank Carbide Burr Set - chews through structural steel and aluminum with ease.
- You'll also need: Safety Face Shield - protects you from the aggressive flying metal chips during deburring.
Frequently Asked Questions
Q: Can I use 1/8-inch shank accessories in this grinder?A: Out of the box, it accepts 1/4-inch shanks. You would need a separate 1/8-inch collet adapter (sold separately) to use smaller bits.
Q: Does the angle head get hot during extended use?A: Like all angle die grinders, the gear head can become warm due to friction, but the precision-machined gears ensure it stays within safe operating temperatures.
