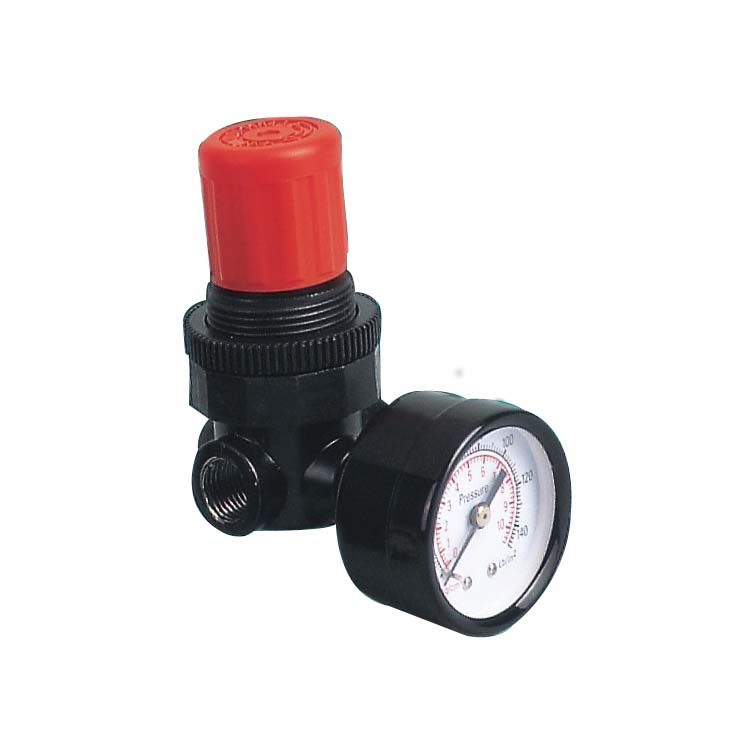

Magnum AR100 1/4-Inch NPT 16-Bar 150-PSI Pneumatic Compressor Air Regulator

Providing absolute control over your downstream line pressure, the Magnum AR100 Air Regulator (MAG-AR100) ensures your sensitive pneumatic tools receive the exact CFM and PSI they require. Machined from lightweight aluminum, this regulator boasts natural corrosion resistance, utilizing its own oxide layer to fend off shop environment degradation without the need for redundant coatings. Featuring a highly visible 0-150 PSI (0-10 BAR) gauge and rated for up to 232 PSI (16 BAR) working pressure, it prevents over-pressurization that can destroy seals in expensive nailers and spray guns.

Features

• Inherent Material Durability: The aluminum body forms a self-healing oxide layer, eliminating the need for paint that could flake into the air stream.
• Precision Dialing: Smooth-turning adjustment knob provides excellent mechanical advantage for fine-tuning line pressure.
• Dual-Scale Gauge: Clearly displays 0-150 PSI (0-10 BAR) for quick visual reference while walking past the compressor.

Specifications

• Max Working Pressure: 232 PSI (16 BAR).
• Gauge Range: 0-150 PSI (0-10 BAR).
• Port Size: 1/4" (6.35 mm) NPT.
• KMS SKU: MAG-AR100.
• MPN: SP025.
