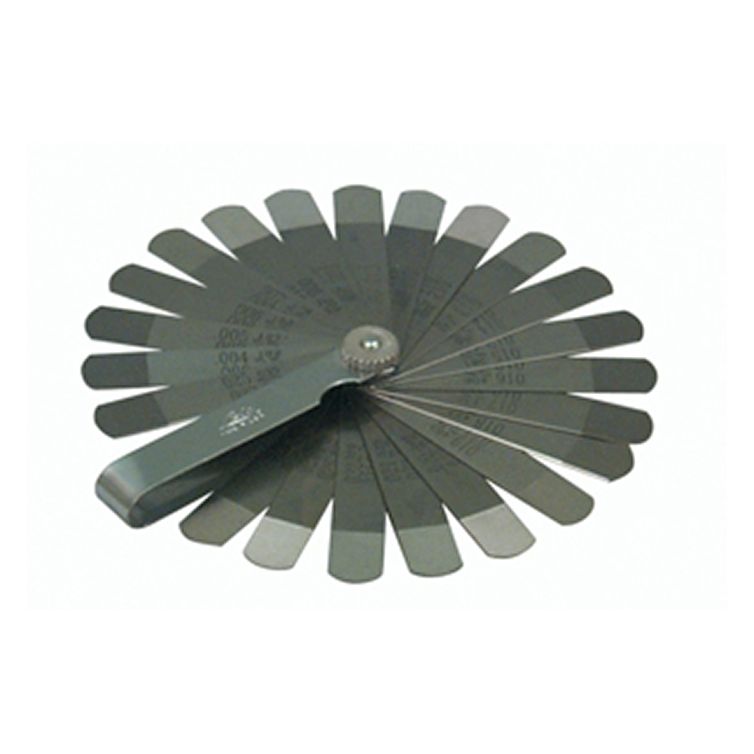

Lisle Go-No-Go Feeler Gauge

Precision stepped blades have a .002" step for accurate settings.

Blades range from 0.004" to 0.027" (0.102 to 0.686 mm) and are approximately 1/2" wide by 3-1/4" long
Includes the following sizes (high / low):
0.004" / 0.006"
0.005" / 0.007"
0.006" / 0.008"
0.007" / 0.009"
0.008" / 0.010"
0.009" / 0.011"
0.010" / 0.012"
0.011 / 0.013"
0.012" / 0.014"
0.013" / 0.015"
0.014" / 0.016"
0.015" / 0.017"
0.016" / 0.018"
0.017" / 0.019"
0.018" / 0.020"
0.019" / 0.021"
0.020" / 0.022"
0.021" / 0.023"
0.022" / 0.024"
0.023" / 0.025"
0.024" / 0.026"
0.025" / 0.027"
0.102 mm / 0.152 mm
0.127 mm / 0.178 mm
0.152 mm / 0.203 mm
0.178 mm / 0.229 mm
0.203 mm / 0.254 mm
0.229 mm / 0.279 mm
0.254 mm / 0.305 mm
0.279 mm / 0.330 mm
0.305 mm / 0.356 mm
0.330 mm / 0.381 mm
0.356 mm / 0.406 mm
0.381 mm / 0.432 mm
0.406 mm / 0.457 mm
0.432 mm / 0.483 mm
0.457 mm / 0.508 mm
0.483 mm / 0.533 mm
0.508 mm / 0.559 mm
0.533 mm / 0.584 mm
0.559 mm / 0.610 mm
0.584 mm / 0.635 mm
0.610 mm / 0.660 mm
0.635 mm / 0.686 mm
