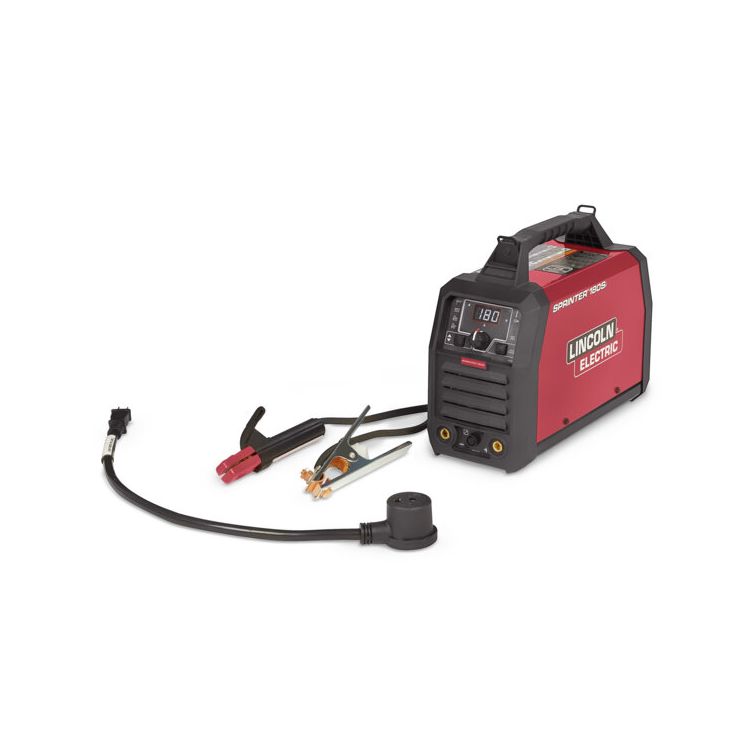

Lincoln Electric Sprinter 180Si
When you see MAP, this means the manufacturer has instituted a Minimum Advertised Price, which is the lowest price we are permitted to advertise the product online. For questions about price, please contact us.
The Sprinter 180Si gives you power in a small package. Weighing in under 20 lbs., it's lightweight and portable, and the 180-amp output enables you to weld electrodes up to 5/32 inches, including 7018 and 6010. This machine is more than just a stick welder, the Sprinter 180Si combines superior stick capabilities with high-frequency TIG, pulsed TIG mode, amptrol compatibility and dual input voltage (120V/230V). A simple display allows you to dial the weld settings so you can get started quickly and easily on any job anywhere – maintenance work, light-fabrication, light structural and everything in between. The Sprinter 180Si is a stick welder and so much more.
Features
- Dual Input Voltage - 120V and 230V inputs so you can plug into any common power supply.
- Multi-Process Capable - Welds DC Stick and DC TIG.
- Two Stick Modes - Crisp arc allows for greater welding versatility and superior performance on E6010 and E6011 electrodes while soft arc allows for dependable E7018 arc starting.
- Pulsed TIG Mode - Provides heat management and enhanced control when making thin, precise welds.
- High Frequency Start - Strike a precise arc every time while TIG welding
- Lightweight Portability - This durable machine weighs under 20 lbs. and is easy to carry with its ergonomic handle or included shoulder strap.
Includes:
- (1) Sprinter 180Si Welder
- (1) Insulated Electrode Holder and Cable
- (1) Heavy Duty Work Clamp and Cable
- (1) 230V to 120V Power Cord Adapter
Product Specifications:
- Input power: 120/1/60
- Rated Output/Current/Voltage/Duty Cycle: TIG: 110A/14.6V/40%Â
- Input Current: 120 VAC: 20AÂ
- Output range: 10-140A DC TIG, 20-110DC STICK
Â
- Input power: 230/1/60
- Rated Output/Current/Voltage/Duty Cycle: TIG: 180A/26.4/25%
- Input Current: 230 VAC: 20A
- Output range: 10-200A DC TIG, 20-180A STICK
Â
- Open Circuit Voltage (OVC): Average OVC - 65V Peak OVC - 110V VRD OVC (Peak) - 14V
- Dimensions: 11.8 in x 6.25 in x 16 in (299.7 mm x 158.8 mm x 406.4 mm)
- Net weight: 20lbs (9.1KG)
