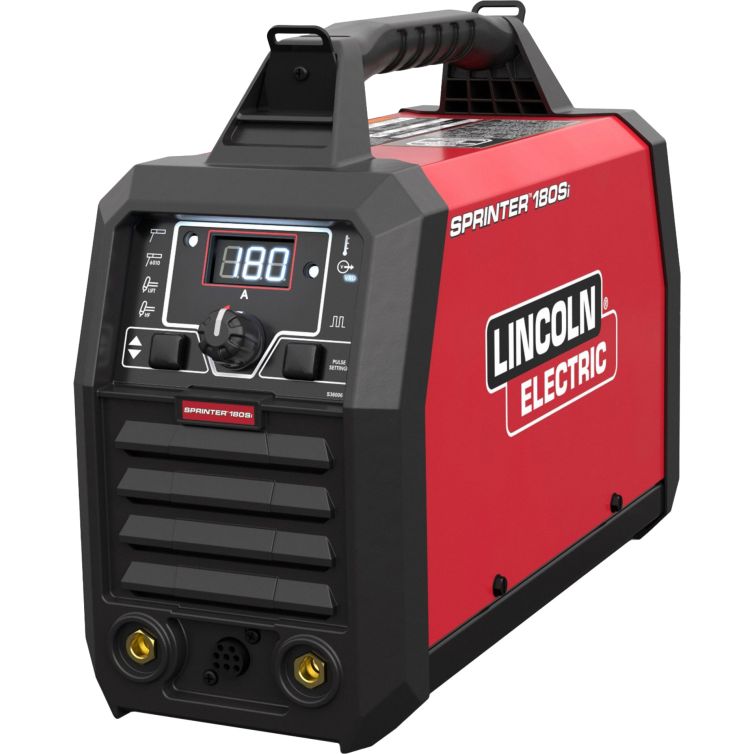

Lincoln Electric Sprinter 180Si DC Stick Welder - TIG

The Sprinter 180Si stick welder gives you power in a small package. Weighing in under 20 lbs., it is lightweight and portable, and the 180 amp output enables you to weld electrodes up to 5/32 inches, including 7018 and 6010. This machine is more than just a stick welder. The Sprinter 180Si welder combines superior stick capabilities with high-frequency TIG, pulsed TIG mode, amptrol compatibility and dual input voltage (120V/230V). A simple
display allows you to dial in the weld settings so you can get started quickly and easily on any job, anywhere – maintenance work, fabrication, light structural and everything in between. The Sprinter 180Si is a stick welder and so much more.

• Stick Mode for Soft Arc on electrodes such as 7018.
• Hi Frequency TIG Mode for use with start button or foot pedal.
• Lift TIG Mode for lift start TIG welding
• Stick mode for Crisp Arc on cellulosic electrodes such as 6010/6011/6013.
• Voltage Output indicator.
• Select Hz rate for Pulsed TIG when welding thin materials or achieving a cleaner weld appearance

Specifications:

• Rated output current: 85A
• Voltage: 23.2V
• Duty cycle: 25% TIG
• Input current at rated output: 230VAC: 30A
• Output range: 20-85A stick
• Open circuit voltage (OCV): Peak OCV-110V
