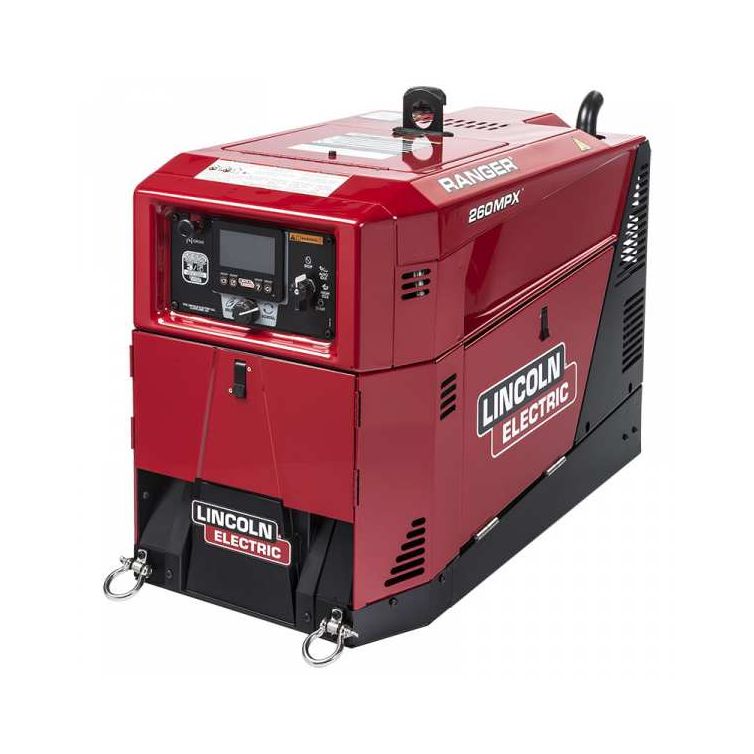

Lincoln Electric Ranger 260 MPX Welder / Generator

Reg. $7,599.99 Special Price $7,307.00
In Stock Online
SKU
LNC-K34581
Model#: K3458-1
Check Other Stores

Details

The Ranger® 260 MPX engine driven welder/generator excels on the job. Small, light, and quiet with an intuitive user interface with advanced technology helps simplify operation and improve arc control. You can also count on a reliable source of clean generator power to run a variety of tools and sensitive equipment.

The easy-to-use digital interface features simple push and turn controls, and combined with technology designed for quick setup and improved arc control, enables you to get started in no time. Maintenance alerts keep track of engine functions and provide real-time data and notifications when service is required. The maintenance screen clearly displays hours remaining, and settings can be customized to issue alerts at preferred intervals.

Thanks to Lincoln's Chopper Technology®, the 260 MPX gives you easy starts, a smooth arc, low spatter and excellent bead appearance. The welder even comes with digital weld meters for Amps and Volts to make it easy for you to precisely pre-set your procedures and monitor actual welding output. With its Ready.Set.Weld push and turn controls, setup and weld adjustments are simple and straightforward.

Able to output up to 10,000W at peak and 9.5kW of continuous clean power, this portable generator and welder can still weld Stick and TIG while operating at only 74.7dBA at full load.

  • Run generator power and weld at the same time, without interruption
  • Operate sensitive electronics like laptops without concern with a clean generator with 5% Total Harmonic Distortion
  • Easy-to-read digital screen with simple push and turn controls
  • 9.5kW of AC generator power accomodates a variety of tools and equipment

Specifications:

  • Processes: Stick, MIG, TIG, Flux-cored
  • 23.5HP Kohler CH730 Engine with 41.6 litre gas tank
  • 100% Duty cycle @ 260 Amps and 26 volts

Rated Output (Maximum):

  • DC Stick: 231A / 29.2V / 100%
  • DC TIG: 260A / 20.4V / 100%
  • DC Constant Voltage: 253A / 26.7V / 100%

Generator Output:

  • 10,000 Watts peak
  • 9,500W continuous / 60Hz single phase
  • Full KVA Receptacle 39.5A @ 240 V / 40A @ 120V
  • Four 120V receptacles (20A total)
  • Noise level: 74.7 dBA at full load
  • Cylinders: 2

Dimensions and weight:

  • 26" x 20" x 36" (H x W x L)
  • 446 lbs
  • Click the pdf link to download feature / spec sheet LNC-K34581 Spec Sheet
