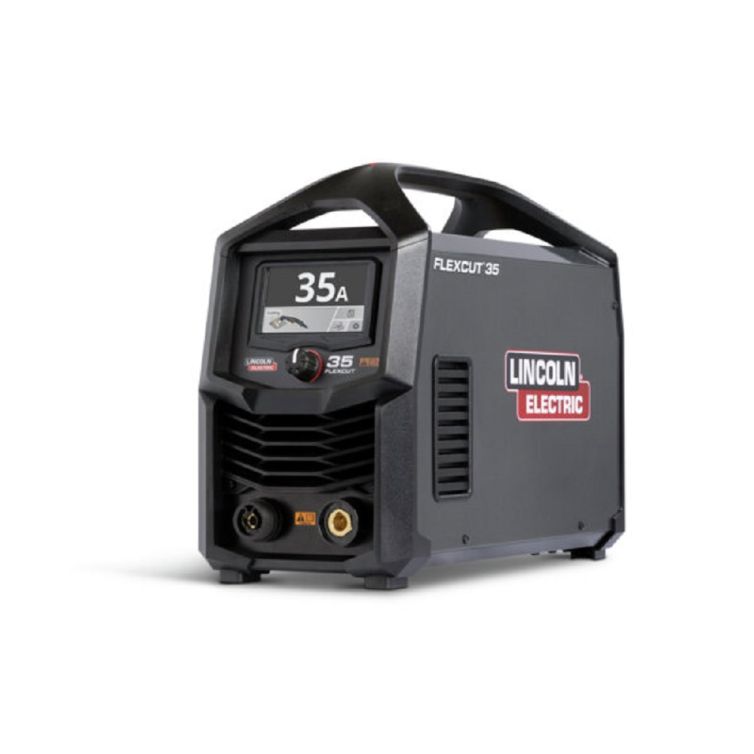

Lincoln Electric Company K5822-H FlexCut 35 Air Ready-Pak Handheld Plasma Cutter - 320 VDC Voltage
The FlexCut 35 Air delivers reliable cutting performance for small projects and light fabrication work. With steady power, consistent output, and a built-in air compressor, it keeps you moving without the need for shop air. The self-contained design makes setup faster, enhances portability, and ensures clean, reliable cuts anywhere you work. Built for versatility and ease of use, it offers precision and durability in a compact package. Perfect for everyday cutting of mild steel, aluminum, stainless steel, and expanded metal, it's designed to run efficiently while keeping operation simple.
Features
- 35 Amps of Cutting Power: Tackle thicker materials with confidence and precision.
- High Duty Cycle: Built for demanding applications without overheating or slowing down.
- LCD Display: Bright, easy-to-read screen with simple controls for quick and precise adjustments.
- Dual Voltage Flexibility: Plug into 120V or 230V power sources.
- Multi-Process Capability: Drag cutting and grid cutting with one machine for convenient versatility.
- Built-in Air Compressor - No compressed air, no problem. The FlexCut 35Air plasma cutter can use its built in air compressor, or external air if available.
- Portable Yet Rugged: Portable design without compromising strength—easy to move, hard to damage.
Specifications
| Brand | FlexCut 35 Air |
| Dimensions (H x W x D) | 14.1 in x 8.1 in x 18.4 in (359 mm x 205 mm x 468 mm) |
| Open Circuit Voltage | 320 VDC |
| Machines Processes | Plasma Cutting |
| Gas Supply | Air or Nitrogen (Internal or External) |
| Gas Pressure Required | 90-130 PSI |
| Plasma Machines Process | Cutting |
| Torch Included | Yes |
| Torch Cooling | Air |
| Recommended Cutting Capacity (Mild Steel) (In/ft) | 1/4 in @ 20 ipm |
| Maximum Cutting Thickness (Mild Steel) (ln/Ft) | 3/8 in @ 10 ipm |
| Maximum Severance (Mild Steel) (In/Ft) | 1/2 in @ 5 ipm |
| Ingress Protection Rating | IP23 |
| Phase 1:Input Voltage #1 (Voltage/Phase/Hertz) | 120/1/60 |
| Phase 1:Rated Output #1A (Current/Voltage/Duty Cycle) | 27A/94V/20% |
| Phase 1:Rated Output #1B (Current/Voltage/Duty Cycle) | 16A/86.4V/60% |
| Phase 1:Rated Output #1C (Current/Voltage/Duty Cycle) | 15A/86V/100% |
| Phase 1:Input Current at Max Rated Ouput #1 (Current) | 28A |
| Phase 1:Input Voltage #2 (Voltage/Phase/Hertz) | 240/1/60 |
| Phase 1:Rated Output #2A (Current/Voltage/Duty Cycle) | 35A/94V/35% |
| Phase 1:Rated Output #2B (Current/Voltage/Duty Cycle) | 27A/90.8V/60% |
| Phase 1:Rated Output #2C (Current/Voltage/Duty Cycle) | 21A/88.4V/100% |
| Phase 1:Input Current at MAX Rated Output #2 (Current) | 17.5A |
| Application | Construction, Automotive, General Fabrication, Marine Fabrication & Repair, Structural Fabrication |
| Included | (1) FlexCut 35 Air Plasma Cutter, (1) FlexCut PRO Torch, (1) Ground Cable & Clamp, (1) Shoulder Strap, (1) Input Power Cord, (1) 120V Adapter, (2) Nozzles, (2) Electrodes, (1) Swirl Ring, (1) Retaining Ring, (1) Shield |
| Warranty | 5 Years |
| P65 Warning | Warning - Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
