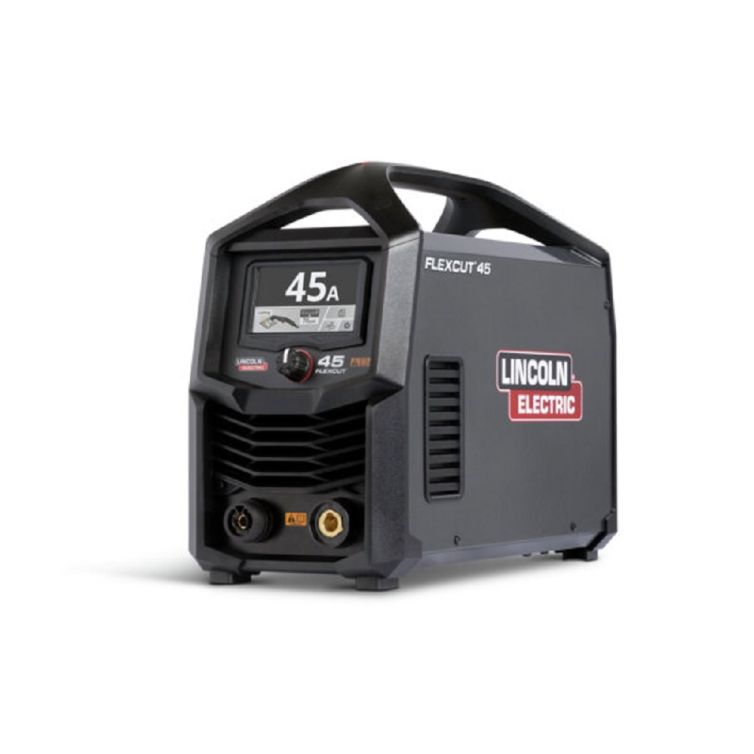

Lincoln Electric Company K5882-H FlexCut 45 Ready-Pak Handheld Plasma Cutter - 320 VDC Voltage

Flyer Sale
SKU: LNC-K5823H Model Number: 11206
In Stock Online

Selected Location

Other Locations

The FlexCut 45 delivers dependable cutting performance with steady power, high-duty cycles, and continuous output, so you can work without interruptions. Built for professionals, it combines precision, portability, and durability, maintaining consistent performance even during long cutting sessions. Designed to run cooler and longer, it’s ideal for demanding applications and cuts through mild steel, aluminum, stainless steel, and grating with ease. Compatible with our FlexConnect(TM) Torch System giving you the flexibility to switch between torch heads or cables in seconds.

Features

  • 45 Amps of Cutting Power: Tackle thicker materials with confidence and precision.
  • High Duty Cycle: Built for demanding applications without overheating or slowing down.
  • LCD Display: Bright, easy-to-read screen with simple controls for quick and precise adjustments.
  • Dual Voltage Flexibility: Plug into 120V or 230V power sources.
  • Plug-and-Play CNC Integration: Seamless integration with CNC tables with automatic table detection for fast, precise setup.
  • Multi-Process Capability: Drag cutting, fine cutting, gouging, and marking with one machine for maximum versatility.
  • Portable Yet Rugged: Portable design without compromising strength—easy to move, hard to damage.

Specifications

BrandFlexCut 45
Dimensions (H x W x D)14.1 Inch x 8.1 Inch x 18.4 Inch (359 mm x 205 mm x 468 mm)
Open Circuit Voltage320 VDC
Machines ProcessesPlasma Gouging, Plasma Cutting
Gas SupplyAir or Nitrogen
Gas Pressure Required90-130 PSI
Plasma Machines ProcessCutting, Gouging, Marking
Torch IncludedYes
Torch CoolingAir
Recommended Cutting Capacity (Mild Steel) (In/ft)5/8 in @ 16 ipm
Maximum Cutting Thickness (Mild Steel) (ln/Ft)7/8 in @ 7 ipm
Maximum Severance (Mild Steel) (In/Ft)1 in @ 5 ipm
Ingress Protection RatingIP23
Phase 1:Input Voltage #1 (Voltage/Phase/Hertz)120/1/60
Phase 1:Rated Output #1A (Current/Voltage/Duty Cycle)27A/90.8V/20%
Phase 1:Rated Output #1B (Current/Voltage/Duty Cycle)16A/86.4V/60%
Phase 1:Rated Output #1C (Current/Voltage/Duty Cycle)15A/86V/100%
Phase 1:Input Current at Max Rated Ouput #1 (Current)26A
Phase 1:Input Voltage #2 (Voltage/Phase/Hertz)230/1/60
Phase 1:Rated Output #2A (Current/Voltage/Duty Cycle)45A/98V/50%
Phase 1:Rated Output #2B (Current/Voltage/Duty Cycle)42A/96.8V/60%
Phase 1:Rated Output #2C (Current/Voltage/Duty Cycle)32A/92.8V/100%
Phase 1:Input Current at MAX Rated Output #2 (Current)22.5
ApplicationConstruction, Automotive, General Fabrication, Marine Fabrication & Repair, Structural Fabrication
Included(1) FlexCut 45 Plasma Cutter, (1) FlexCut PRO FlexConnect Handheld Torch, (1) Ground Cable & Clamp, (1) Shoulder Strap, (1) Input Power Cord, (1) 120V Adapter, (7) Nozzles, (7) Electrodes, (1) Swirl Ring, (1) Retaining Ring, (3) Shields
Warranty5 Years
Weight26.8 lbs (12.2 kg)
P65 WarningWarning - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Manufacturer
Lincoln Electric
Brand
Lincoln Electric
Manufacturer SKU
11206
Item Class
Ready-Pak Handheld Plasma Cutter
