Lincoln Electric Magnum PRO 100SG Air-Cooled Spool Gun
Details
The Magnum PRO 100SG spool gun is the lowest cost way to add reliable and precise wire feeding performance for soft aluminum wire. It’s easy to set up for occasional and experienced welders on Lincoln Electric compact wire feeder/welders.
Features Premium Magnum PRO expendables such as Copper Plus contact tips and long-life diffusers with Anti-Seize threads. The spool can be used for all aluminum alloys. The recommended wire diameters can be fed with the same drive roll and liner assembly. The Magnum PRO 100SG is built with a full travel mechanical trigger that gives excellent feedback even through a welding glove. Also comes with a 10 ft (3.0 m) gun cable for fast connections to the welding machine.
Best of all, it weighs only 3.5 lbs (1.6 kg) and has an ergonomic grip and balanced design.
- Premium Magnum PRO expendables—Copper Plus contact tips and long-life diffusers with Anti-Seize threads— improve heat dissapation and extend service life
- Lightweight gun weighs only 3.5 lbs
- Feeds all 0.030" to 0.035" aluminum alloy wire on included drive roll and liner
- Ergonomic grip and balanced design
- Full travel mechanical trigger can be felt easily through welding gloves
- No expensive gun or bulky adapter module
- Sturdy, cushioned carrying case protects gun during storage and transportation
- Recommended power sources include Power Mig 216, 210 MP, 140C, 180C, 180 Dual, SP-140T and SP-180T
- Specifications:
- Welding output: 130 amps @ 30% duty cycle
- Wire size: 0.030" - 0.035"
- Cable length: 10' (3 m)
- Dimensions (H x W x D): 15.75" x 10.5" x 4.25" (400 mm x 267 mm x 108 mm)
- Gun weight: 3.5 lbs (1.6 kg)
- Total weight: 13 lbs (5.9 kg)

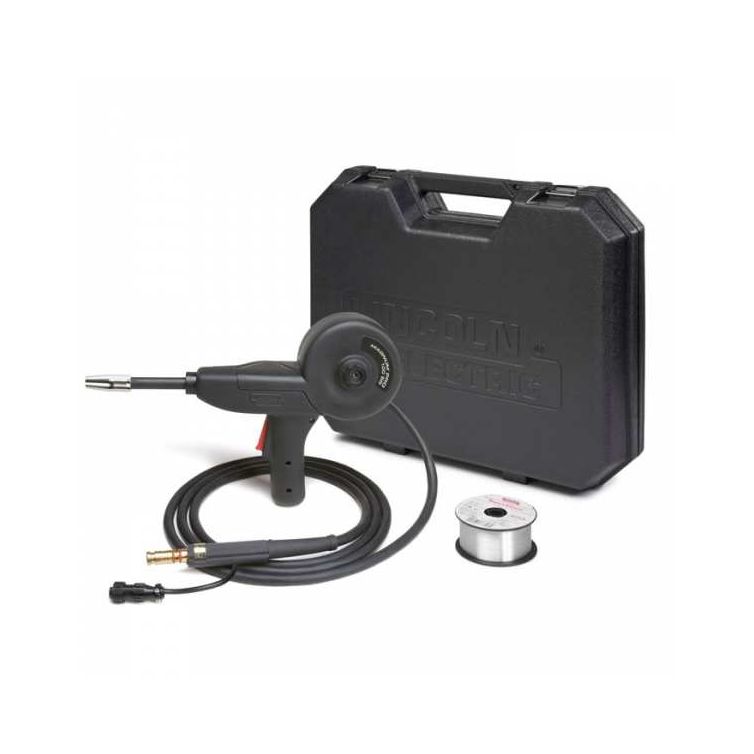

- Includes spool gun, 10' cable, one spool of 0.035" 4043 aluminum alloy welding wire, drive roll, three contact tips, harness with toggle switch and cushioned carrying case
- Click PDF icon to download feature / spec sheet
