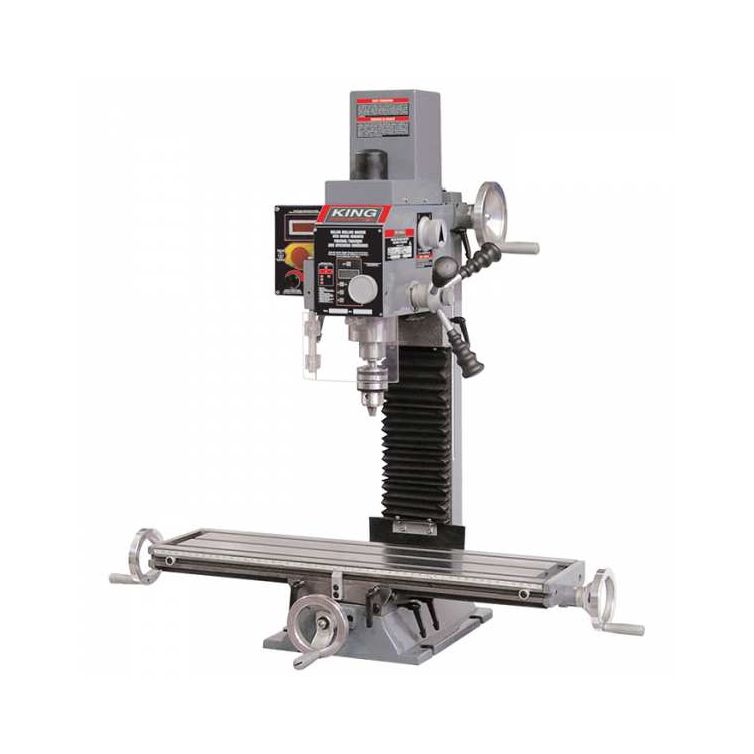

King Industrial 3/4" Milling & Drilling Machine with Digital Readout

Powerful 1 HP single phase DC motor
Head tilts 90 degrees left or right
Safety guard with limit switch protection
Magnetic line interruption switch needs a restart after a power failure
Spindle depth digital readout and control panel with metric and imperial readings
Spindle RPM digital readout
Spindle depth fine feed knob
Forward/reverse switch and variable speed selector dials
Comes with 1/2” chuck, chuck key, R8 chuck arbor, safety guard, 2 T-bolts, oil bottle, adjustment wrenches, hex. keys and tool box
Specifications:
Drilling capacity in cast-iron: 3/4"
Drilling capacity in steel: 5/8"
Maximum distance from spindle nose to table: 13"
Swing: 13"
Spindle taper: R8
Spindle stroke 2"
Variable speeds: 2 (50-1,125 / 100-2,250) rpm
Face mill capacity: 2-1/2”
End mill capacity: 3/4"
Maximum longitudinal travel: 18-7/8”
Cross travel: 6-7/8”
Working area of the table: 7-1/16” x 27-1/2”
Size of T-slot on table: 1/2”
Motor: 4.8 amp., 2,250 rpm
Voltage: 120 Volt, 1 phase, 60 hz
Assembled dimensions (l x w x h): 27-1/2" x 29-5/8" x 35-3/8"
Net weight: 264 lbs
