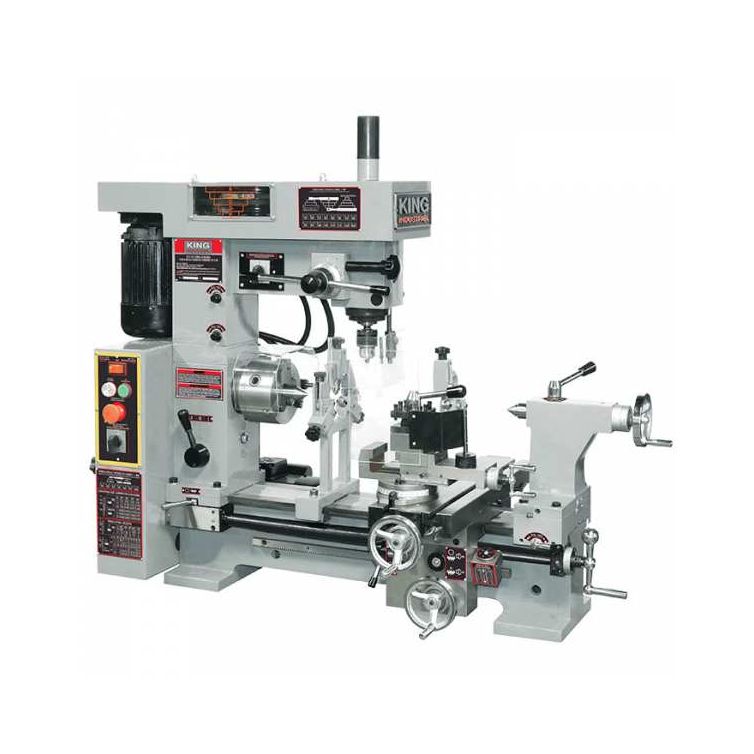

King Industrial 16" x 20" Metal Lathe/Mill Combo

Two powerful 3/4 HP 110V motors
Lathe chuck and drill chuck safety guards with limit switch protection and standard tool post safety guard
Easily change from Lathe mode to Mill mode
Forward/reverse switch for both modes
Bedways are hardened and precision ground
Comes with 5”- 3 jaw chuck, imperial & metric change gears, quick change tool post with 1/2” capacity, steady rest, follow rest, thread chasing dial indicator, MT#3 & MT#4 dead centres, 1/2” drill chuck and tool box with adjusting tools
Specifcations:
Distance between centres: 20"
Swing over bed and carriage: 16-1/2" / 11-1/2"
Spindle bore: 1-1/8"
Headstock/tailstock tapers: MT#4 / MT#3
Cross slide travel: 8"
Lathe spindle speeds: 7 (160 - 1360 RPM/tr/min)
Thread cutting range: 36 (4-120 TPI/FPP) 22 (0.2-6mm)
Automatic feeding range: 0.002 - 0.014” / 0.05 - 0.35mm
Drilling/face mill/end mill capacities: 7/8” / 1-1/8” / 3-1/8”
Max.distance spindle nose to milling table: 12"
Drilling speeds: 16 (125-3000 RPM/tr/min)
Motors (Lathe/Mill): 3/4 HP/CV, 110V, 9 Amp. 1 phase, 60 Hz
