King Canada

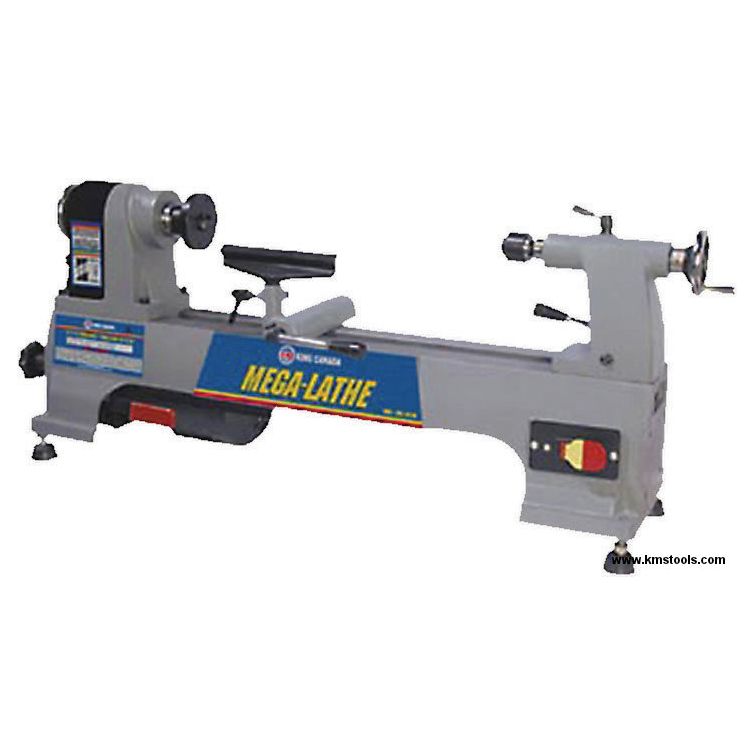

King Canada MEGA-LATHE 10" x 16" Wood Lathe

Super Special
SKU: KC-KWL1016C Model Number: KWL-1016C
In Stock Online

Selected Location

Other Locations

The King Canada MEGA-LATHE has a centre-to-centre capacity of 16" and an inboard swing of 10" for bowl turning. This lathe runs at six different speeds so you can take on a variety of woodturning projects and use the right speed for each.

  • Precision-machined cast-iron bedway, headstock and tailstock ensures stability and minimizes vibration for smoother turning
  • Inboard swing of 10" for bowl turning
  • Maximum turning capacity of 16” between centers
  • Easy access 6-speed step pulley matches speed with specific turning operation
  • Large 6" toolrest for flexibility in turning positions
  • Toolrest post clamp can be positioned on either side
  • Includes MT2 live centre, MT2 spur centre, 3" faceplate, steel knock-out bar, hex keys and safety glasses
  • Specifications:
  • Product: Wood lathe
  • Manufacturer: King Canada
  • Model: KWL-1016C Mega Lathe
  • Swing over bed: 10"
  • Swing over base: 7-1/2"
  • Distance between centres: 16"
  • Spindle size (RH thread): 1" x 8 TPI
  • Spindle speeds: 480 / 1,270 / 1,960 / 2,730 / 3,327 / 4,023 rpm
  • Headstock, tailstock taper: MT2
  • Self-ejecting tailstock travel: 3-1/2"
  • Motor: 1/2 hp, 110V, 60 Hz, 1,720 rpm
  • Dimensions (l x w x h): 34" x 10" x 15"
  • Weight: 106 lbs
Manufacturer
King Canada
Manufacturer SKU
KWL-1016C
