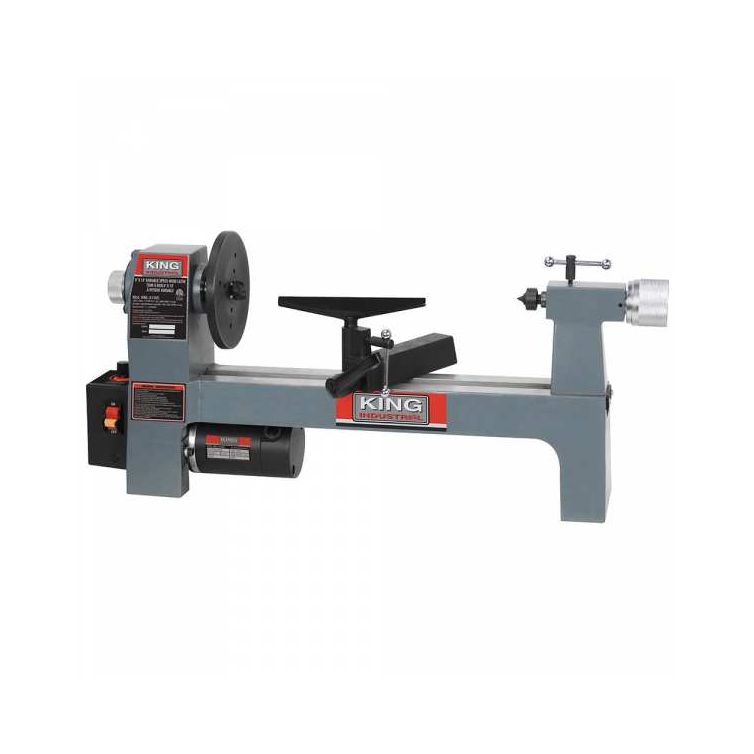

King Industrial 8" X 13" Variable Speed Wood Lathe
Flyer Sale

SKU: KC-KWL813VS
Model Number: KWL813VS
$269.95
$339.99
You save $70.04
In Stock Online
This high-performance lathe boasts a 1/3 HP DC motor, ideal for turning pens and other small detailed turnings. The precision-machined cast-iron bedway, headstock and tailstock construction gives the lathe a smooth operation, minimizing vibration. The lathe is capable of a 8" inboard swing for bowl turning, and a Maximum turning capacity of 13" between centers through variable speeds up to 3200 RPM.
- High performance 1/3 HP (300 Watt) DC motor
- Ideal for pens and other small detailed turnings
- All precision-machined cast-iron bedway, headstock and tailstock construction ensures stability and minimizes vibration for smoother turning
- 8" inboard swing for bowl turning
- Maximum turning capacity of 13" between centers
- Variable speed range of 750 to 3200 RPM
- Chrome plated handwheels on both the headstock and tailstock
- Complete with 4-1/4" and 7" tool rests with 1/2" post diameter, 5-3/4" faceplate, MT#1 live center, MT#1 spur center, steel knock-out bar, adjustment keys and hex. keys
Specifications
- Swing Over Bed: 8"
- Swing Over Tool Post Base: 5-1/4"
- Distance Between Centers: 13"
- Spindle Size (Rh Thread): 1" X 8 Tpi
- Spindle Bore: 3/8"
- Variable Speed Range: 750 - 3200 Rpm
- Headstock, Tailstock Taper: mt #1
- Tailstock Travel: 1-9/16"
- Dc Motor: 1/3 Hp, 3.2 Amp., 4,600 Rpm
- Voltage: 120v, 1 Phase, 60 Hz
- Assembled Dimensions (Lxwxh) / Weight: 27-3/4" X 10" X 12-1/4" / 42 Lbs
- Package Dimensions (Lxwxh) / Weight: 28" X 13-1/4" X 7-5/8" / 47 Lbs
