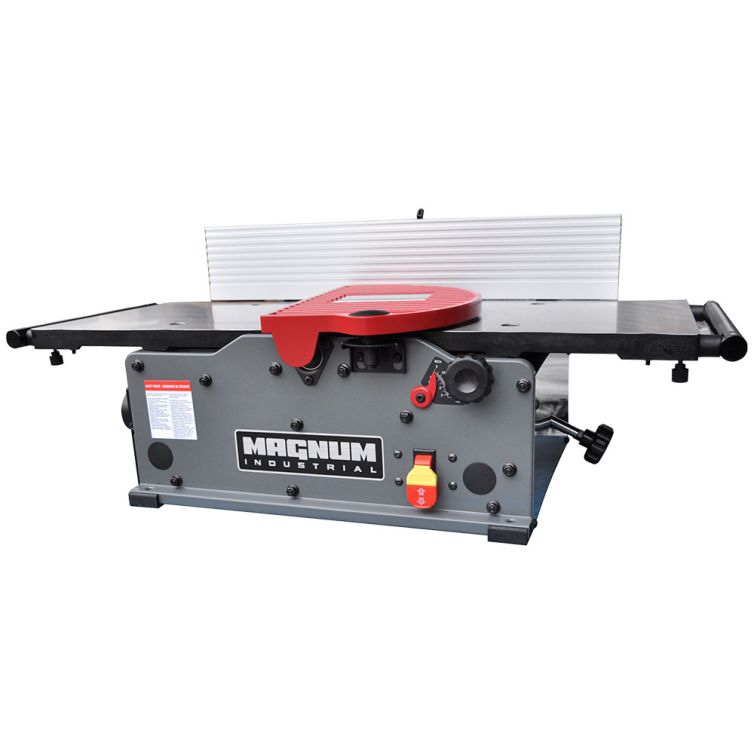

Magnum Industrial 12" Bench Top Jointer

Jointing is a critical function for preparing cupped or twisted material prior to planing. Our
successful 6", 8" and 10" versions now have a big brother in the Magnum Industrial 12" Bench
Top Jointer. The MI-81510 compact and powerful bench top jointer is 12" wide and features an
industrial-style helical head to ensure quiet and accurate finishes. The two-sided carbide tips
ensure long life when processing hardwoods such as oak and maple. Cast iron precision tables are
parallelogram with extra fine adjustments. In addition to the simple system of tip replacement,
these helical heads have very low decibel ratings. Extended table rollers can be adjusted for extra
support when jointing longer pieces.

• Motor: 120V, 60 Hz, AC only, 12A
• Motor speed: 19,000 RPM ±10% (no load)
• Max cut width: 12" (304.8 mm)
• Max cut depth: 1/8" (3.2 mm)
• Cutterhead speed: 11,000 RPM
• Cutterhead diameter: 2"
• Carbide knife inserts: 24 units
• Overall fence size: 4-3/8" x 24" (111 x 609.6 mm)
• Table dimensions: 12-3/16" x 34" (309.5 x 863.6 mm)
• Table dimensions with extended rollers: 12-3/16" x 54" (309.5 x 1,371.6 mm)
• Machine length: 54" (1,371.6 mm)
• Machine depth: 23-3/4" (603 mm)
• Machine height: 13-1/4" (336.5 mm)
• Weight: 87.1 lbs (39.5 kg)
• Shipping weight: 104.8 lbs (47.5 kg)
