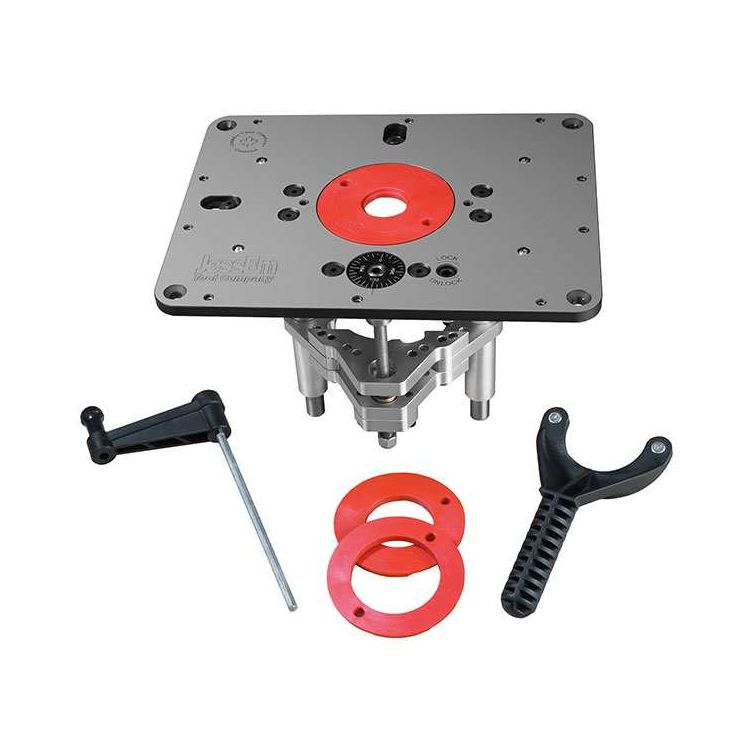

The durable, Canadian-made Rout-R-Lift II features a 3/8" phenolic top plate and a smooth turning double-sealed ball bearing spindle. Its low-profile design allows above-the-table bit changes and all its machined components are CNC machined at JessEm's Barrie, Ontario, location. This model (02310) fits any router with a 3.5" diameter motor.
Double-sealed ball bearing on spindle delivers smooth, easy operation—raise and lower any router with one finger
Threaded spindle with anti-backlash nut removes vibration from thread clearance and prevents spindle from moving when router is operating
Shafts are pressed into mounts with hydraulic pressure to provide the most rigid support for the carriage
Low-profile design allows above-the-table bit changes—no bent wrenches required
Includes Tab-Loc insert ring with 2" diameter centre hole, insert ring wrench, start pin, height adjustment handle, and mounting and levelling screws
Made in Canada
Specifications:
Product type: Router lift
Manufacturer: JessEm
Model number: 02310
Plate dimensions: 9-1/4" x 11-3/4"
Plate thickness: 3/8"
Vertical travel: 3"
Maximum bit size without insert: 3-1/2"
Top plate: Solid phenolic
Spindle mount: 1 R-8 double sealed bearings
Compatible routers:
Porter Cable 690/890
DeWalt 610/616/618
Bosch 1617/1618
Any router with 3.5" motor diameter
