Fluke

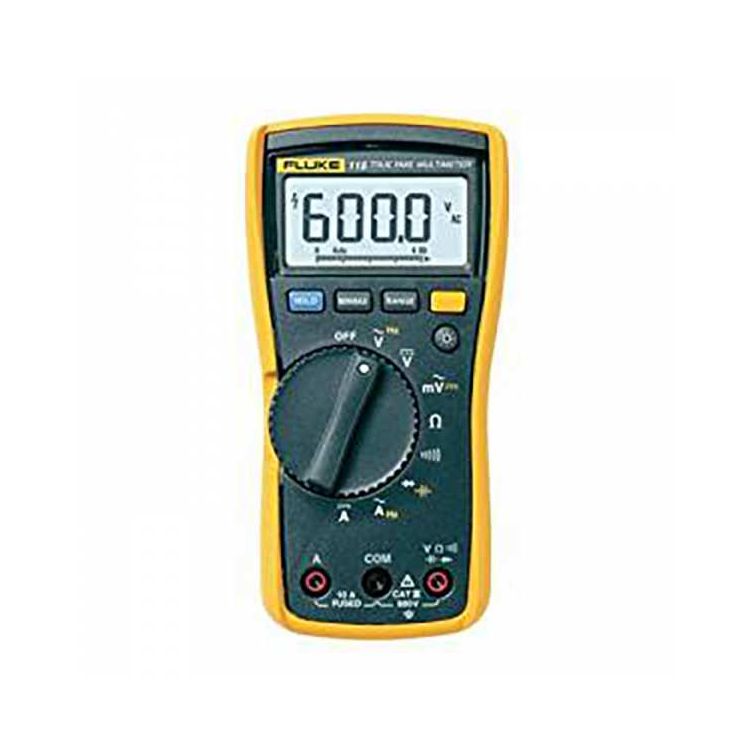

Fluke True-RMS Digital Multimeter

SKU: FLK-115EFSP Model Number: 2538790
In Stock Online

Selected Location

Other Locations

For general purpose electrical and electronic test requirements, the Fluke 115 True RMS digital multimeter provides the perfect answer. Its simple, one-handed operation and compact design meets the needs of a wide variety of field service technicians. It measures True RMS voltage and current with 6000 count resolution as well as resistance, continuity, frequency and capacitance for quick verifications.

  • CAT III 600 V safety rated
  • Measures resistance, continuity, frequency, and capacitance
  • Provides Min/Max/Average with elapsed time to record signal fluctuations
  • Comes with a holster with probe holders for easy storage
  • Features a compact ergonomic design for one-handed operation
  •
  • Specifications:
  • Maximum Voltage: 600 V
  • Surge protection: 6kV peak per IEC 61010-1 600 VCAT III, Polution degree 2
  • Display: 6000 counts, updates 4/sec
  • Bar Graph: 33 segments, updates 32/sec
  • Operating temperature: -10°C to +50°C
  • Storage temperature: -40°C to +60°C
  • Battery type: 9V Alkaline, NEDA 1604A/IEC 6LR61
  • Battery life: 400 hrs typical, without backlight
  •
  • Accuracy Specifications:
  • DC Minivolts range / resolution: 600 mV/0.1mV
  • DC Minivolt accuracy: ±0.5% + 2
  • DC Volt range / resolution: 6 V / 0.001, 60.0 V / 0.01 V, 600.0 V / 0.1V
  • DC Volt Accuracy: ± 0.5% + 2
  •
  • AC millivolts True RMS range / resolution: 600.0 mV / 0.1 mV
  • AC millivolts True RMS Accuracy: 1.0% + 3 (DC, 45 Hz to 500 Hz), 2% + 3 (500 Hz to 1 kHz)
  • AC volts True RMS range/resolution: 6.00 V / 0.001 V, 60.0 V / 0.01 V, 600 V / 01. V
  • AC volts True RMS Accuracy: 1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1kHz)
  •
  • Continuity range / resolution: 600 ? / 1 ?
  • Continuity accuracy: Beeper on < 20 ?, off > 250 ?, detects opens or shorts of 500 ?s or longer
  • Ohms range / resolution: 600.0 ? / 0.1 ?, 6 k?/0.001 k?, 60 k? / 0.01 k?, 600 k? / 0.1 k?, 6 M? / 0.001 M?
  •
  • Click PDF icon to download spec sheet FLK-115
Manufacturer
Fluke
Manufacturer SKU
2538790
