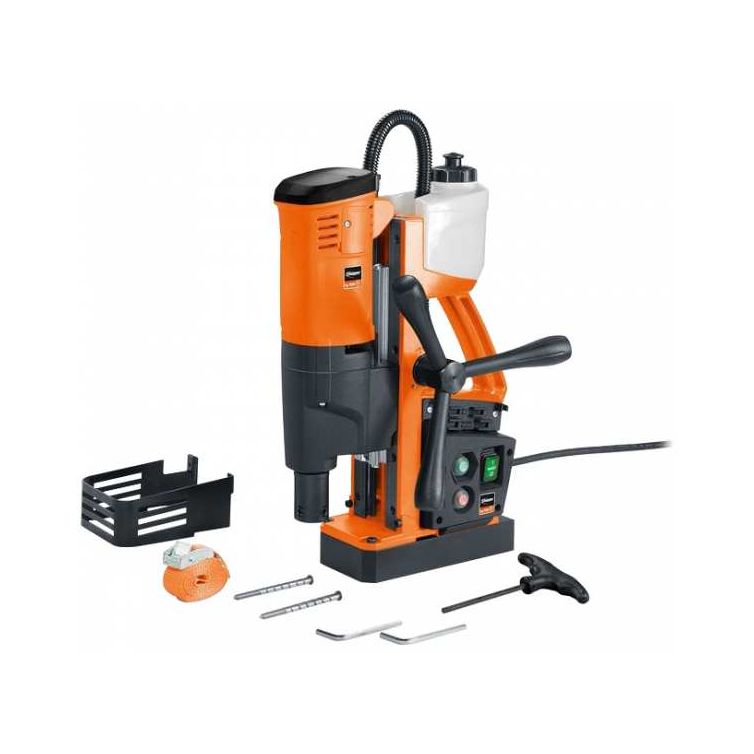

Fein 1-3/8" JME Holemaker III Magnetic Drill

The optimal drilling solution with high powered German motor designed for use with Carbide and HSS cutters for toughest jobs and applications.

• Extemely wear resistant concept with durable newly designed polyurthane motorhousing for use in industry and manual trades
• Extemely lightweight drill yet powerful enough for heaviest drilling applications
• Cost effective drill for running with Carbide cutters which offer longer life, higher cutting rate and capable of cutting harder materials. Also running with standard HSS cutters with great results
• Optimum power-to-weight ratio
• Integrated cooling tank
• Magnet holding power detection below 3/16" (4 mm)
• Pivoting motor cable
• Higher RPM for optimal use with carbide cutters
• Side-reversible feed handwheel with hexagonal hub
• Integrated hexagon socket holder

Specifications

• Power consumption: 1,100 W
• Power output 510 W
• Full load speed: 450 RPM
• No load speed: 590 RPM
• Carbide cutter max diameter: 1-3/8" (35 mm)
• HSS cutter max diameter:1-3/8" (35 mm)
• Cutter max drilling depth: 2" (50 mm)
• Twist drill max diameter: 5/8" (16 mm)
• Cutter holder: 3/4" straight mark
• Stroke: 5-11/16" (145 mm)
• Total stroke range: 10-1/4" (260 mm)
• Magnetic holding force: 2810 lbs
• Magnetic bas dimensions: 7-11/16" x 3-9/16" (195 mm x 90 mm)
• Cable with plug: 8.9' (2.7 m)
• Weight: 25.79 lbs (11.70 kg)

Includes

• 1 coolant tank
• 1 safety strap
• 2 pilot pins
• 1 chip guard
• 2 hexagonal socket keys, 5 and 6 mm
• 1 hexagonal socket keys with T-grip, 5 mm
• 1 case
