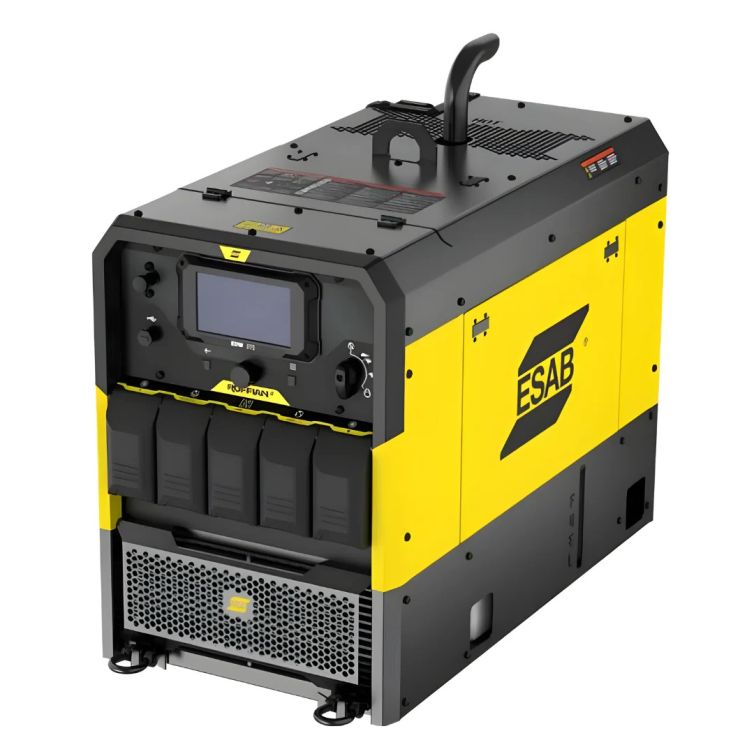

ESAB Ruffian EMP 270G EDW
The Ruffian EMP 270G is the next generation of ESAB engine driven welders. A lightweight, compact and powerful combination of generator and multiprocess welder. This Ruffian comes with a unique inverter full of features to bring welding quality to the next level. Delivers up to 270 A with 100% duty cycle and its integrated generator can deliver up to 11 kW throughout 120 VAC and 240 VAC auxiliary outlets, thanks to the reliable 23.5 HP Kohler gasoline engine.
Ruffian is equipped with a tough 7 in. TFT colorful digital display, which not only allows user to easily select welding parameters through intuitive menus but also drives settings to deliver optimized welds through accurate software.
Strong focus on simplified usage and maintenance. The user has full visibility of each component and precise information about parts replacement timing, to extend the overall equipment lifespan.
For MIG welding, it has been designed to work with either spool guns or the external ESAB RobustFeed wire feeders, sold separately.
Specifications:
| MIG (GMAW) / Flux Cored (FCAW / FCAW-S) Welding Output | 260 A27.0 V @ 100 % Duty Cycle |
| Stick (SMAW) / Gouging (CAC-A) Welding Output | 235 A29.4 V @ 100 % Duty Cycle |
| TIG (GTAW) Welding Output | 270 A20.8 V @ 100 % Duty Cycle |
| Setting Range GTAW (TIG) SMAW/MMA (Stick) GMAW (MIG/MAG) |
20.0-270 A (10.8-20.8 V) 20.0-270 A (20.8-26 V) 30.0-270 A (15.5-26 V) |
| Open Circuit Voltage | 94 V |
| Operating Temp | -10 to +40°C °C ( +14 to +104°F °F ) |
| Engine Type | Kohler, Command PRO CH730, |
| Power | 23.5 hp @ 3750 rpm |
| Cooling | Air |
| Fuel | Gasoline |
| Enclosure Class | IP23S |
| Dimensions, L x W x H | 955.3 x 505.0 x 836.2 mm ( 37.6 x 19.9 x 32.9 in. ) |
| Weight | 192.8 kg ( 425.0 lbs ) |
