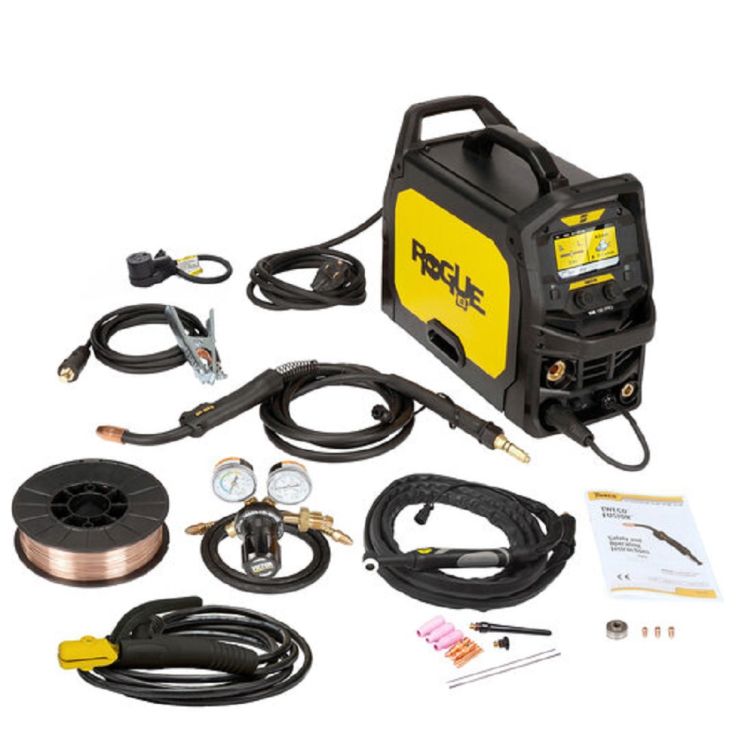

ESAB Rogue EMP 210 PRO Welder
When you see MAP, this means the manufacturer has instituted a Minimum Advertised Price, which is the lowest price we are permitted to advertise the product online. For questions about price, please contact us.
ESAB Rogue EMP 210 PRO is an inverter-based multi-process welding system designed to address all your welding project needs, from light fabrication to repair and maintenance. The system features industrial-grade arc performance and full featured controls that allow the welder to fine tune arc characteristics based on the material they are welding.
With a weight of only 16.7 kg, 230 V single-phase input and compatibility with 10 kVA generators, this system provides maximum flexibility and portability, both in the shop and in the field.
- True multi-process with Synergic MIG, Manual MIG, MIG Brazing, Flux-Cored, Lift TIG, and MMA (including 6010)
- Intuitive 5.0 in. TFT screen offers clear views with direct interaction
- Synergic Weld Programs –full range of welding parameters, 0.5 –10.0 mm with single knob control
- Power Factor Correction (PFC) –ensures a stable arc, resistant to power fluctuations even while working on long extension cables up to 100 m
- Unique rugged industrial design –supporting multiple lift points and cable management
- Arc Dynamics –fine tune arc characteristics for a crisp/stiff arc for carbon steel or a smooth/soft arc for stainless steel
- Jobs –10 memory save/recall function
- Spool Gun Ready –Rogue automatically configures set up when spool gun is connected
- IP23S rated for indoor/outdoor use
Welding Specifications:
Mig (GMAW) Welding output:
- 210 A24.5 V @ 30% Duty Cycle
- 136 A20.8 V @ 60% Duty Cycle
- 105 A19.2 V @ 100% Duty Cycle
MMA (SMAW) Wedling output:
- 180 A27.2 V @ 30% Duty Cycle
- 116 A24.7 V @ 60% Duty Cycle
- 90 A23.6 V @ 100% Duty Cycle
TIG (GTAW) Welding output:
- 210 A18.0 V @ 30% Duty Cycle
- 136 A15.4 V @ 60% Duty Cycle
- 105 A14.2 V @ 100% Duty Cycle
Other specifications:
- Current range: 30-210 A
- Voltage range: 12-26 V
- Wire feeder specs. 2.0-16.5 m/min
- Open circuit voltage: 78 VDC
- Input voltage: 230 VAC ± 10%, 1 Φ, 50/60 Hz
- Max spool diameter: 100 & 200 mm
- Power factor at max current: 0.99
- Efficiency at max current: >82 %
- Energy save mode: 50W
- Operating temperature: -10 - +40°C
- Enclosure class: IP23S
- Certification mark: CE
- Setting range:15.5-24.5 V (30-210 A), 20.4-27.2 V (10-180 A), 10.4-18.4 V (10-210 A)
