DeWalt

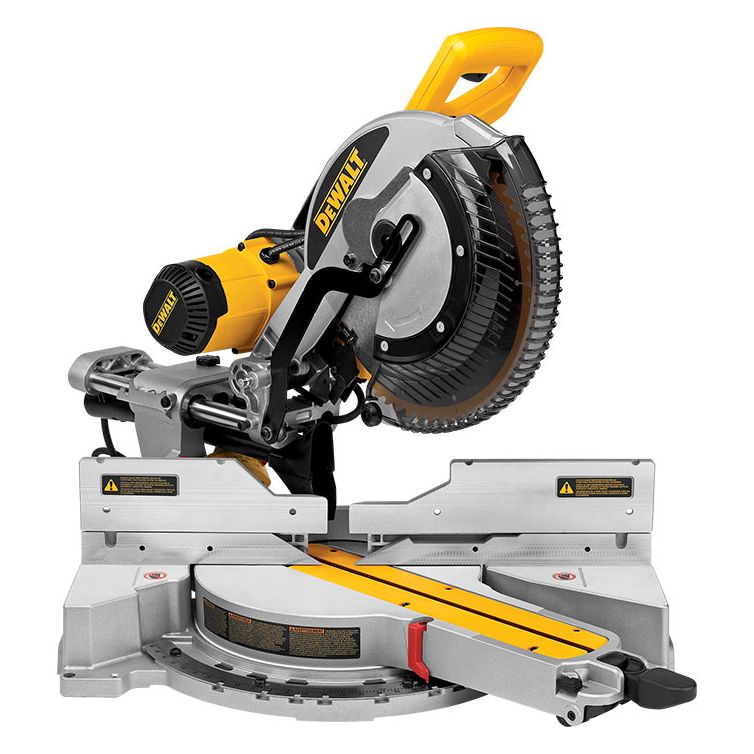

DeWalt 12" Dual Bevel Sliding Mitre Saw

SKU: DEW-DWS780 Model Number: DWS780

When you see MAP, this means the manufacturer has instituted a Minimum Advertised Price, which is the lowest price we are permitted to advertise the product online. For questions about price, please contact us.

In Stock Online

Selected Location

Other Locations

The DWS780 12" double bevel sliding compound mitre Saw has a 15 Amp motor and integrated XPS cross cut positioning system for adjustment-free accurate cut line indication. Tall sliding fences support 7-1/2" of nested crown and 6-3/4" of base molding vertically. Exclusive Back Fence Design cuts up to 2x16 dimensional lumber at 90°. Increased miter capacity of 60° (R) and 50° (L) features durable stainless steel miter detent plate with cam lock for repeatable accuracy with easy adjustments.

KMS 5 Star Power Tool Advantage Plan: We add one FREE extra year of warranty to every power tool purchased at KMS.

  • Integrated CUTLINE Blade Positioning System provides adjustment free cut line indication for better accuracy and visibility
  • Powerful 15 amp, 3,800 rpm motor delivers extended power and durability
  • Super efficient dust collection system captures over 75% of dust generated
  • Tall sliding fences support crown molding up to 7-1/2" nested and base molding up to 6-3/4" vertically against the fence while easily sliding out of the way for bevel cuts
  • Exclusive back fence design cuts up to 2x16 dimensional lumber at 90° and 2x12 at 45°
  • Adjustable stainless steel miter detent plate with 10 positive stops improves productivity and ensures cutting accuracy
  • Mitres 60° to the right and 50° to the left providing increased capacity
  • Oversized bevel scale makes bevel angle adjustments accurate and easy
  • Compact, lightweight design (56 lbs.) allows for easy transport and storage
  • Cam lock miter handle with detent override deliver quick and accurate mitre angles
  • Dual horizontal steel rails with innovative clamping mechanism and linear ball bearings deliver an accurate, durable and compact saw
  • Innovative gearbox and belt-drive design increases vertical cutting capacity
  • Precise miter system and machined base fence support optimize durability and cutting accuracy
  •
  • Specifications:
  • Blade Diameter:12"
  • Arbor Size: 5/8" or 1"
  • No Load Speed: 3,800 RPM
  • 45° Bevel Cut Capacity (Dimensional Lumber): 2X14" (2X16" with back fence)
  • 90° Cross-Cut Capacity (Dimensional Lumber): 2X14" (2X16" with back fence)
  • 45° Mitre Cut Capacity (Max width): 4x8"
  • 90° Cross-Cut Capacity (Max width): 14" (16" w/ special setup)
  • 45° Mitre Cut Capacity (Max height): 4x8"
  • Vertical Capacity/Crown Moulding Vertically Nested: 7-1/2"
  • Vertical Capacity/Baseboard Against Fence: 6-3/4"
  • Horizontal Capacity/Brown Moulding Lying Flat: 13-3/4"
  • Horizontal Capacity/Baseboard Lying Flat: 16"
  • Weight: 56 lbs
  •
  • Includes:
  • DWS780 12" mitre saw
  • Blade wrench
  • Dust bag
  • Vertical material clamp
  • 12" carbide blade

Manufacturer
DeWalt
Manufacturer SKU
DWS780
