Campbell Hausfeld

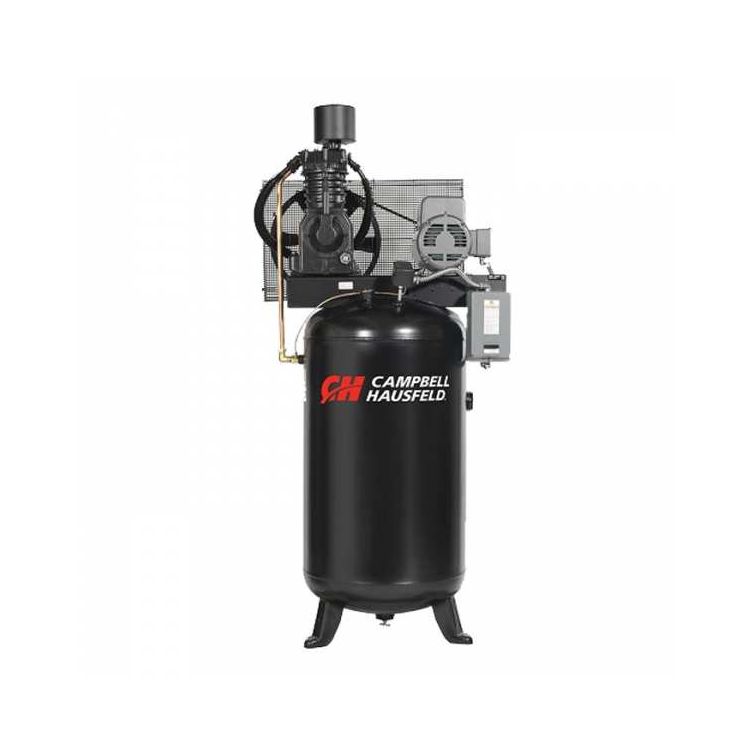

Campbell Hausfeld 7.5 HP 80 Gallon Two-Stage Air Compressor

Reg. $3,999.99 Special Price $3,899.99
In Stock Online
SKU
CH-CE7000
Model#: CE7000
Check Other Stores

The Campbell Hausfeld 80-gallon, 7.5 hp, vertical, two-stage air compressor (CE7000) is ideal for auto repair facilities and tire repair outlets. This air compressor has high air flow of 25 CFM @ 90 PSI to power multiple, high-demand air tools. A long-life, cast-iron, two-stage pump is designed to deliver more than 15,000 hours of operation. The pump head and valve plate feature an advanced design with Viton high-temperature O-rings for superior high-pressure sealing when compared to paper gaskets. For smooth, low-vibration operation, the crankshaft is fabricated of ductile iron and optimally balanced.

  • Commercial-duty, cast-iron, oil-lubricated, two-stage pump for heavy-duty and industrial applications
  • Industrial-rated 7.5 hp NEMA motor with thermal overload protector provides reliable service
  • Includes magnetic starter, wired at the factory for quick electrical hook up
  • Fully enclosed metal belt guard for safe operation
  • 80 gallon vertical tank, rated to 200 psi, maximizes floor space
  • 25.0 CFM @ 90 PSI
  • 175 Max PSI
  • 230 V, 31 Amp, single phase 60 Hz electrical
  • Durable and reliable for commercial fabrication and repair shops and serious DIYers
  • Exceptional three-year warranty

Specifications:

  • Tank style: vertical
  • Tank capacity: 80 gallons
  • Compressor horsepower: 7.5
  • Max psi: 175
  • Compressor scfm@40psi: 25.90
  • Compressor scfm@90psi: 25.00
  • Compressor cfm@max psi: 24.50
  • Compressor voltage: 208-230
  • Compressor amps: 31
  • Compressor phase: 1
  • Pump type: two stage
  • Lubrication: oil lube
  • Special features: metal belt guard
  • Compressor duty cycle: 80/20
  • Noise level: 87 dBA at 3'
  • Shipping dimensions (Lx W x H): 35" x 45" x 84"
