The 485C Dual Performance Value Pack includes two 12V 485C compressors. They feature sleek heads, 200-psi performance, 100% duty cycle and quieter noise levels. Both pumps are equipped with a stainless steel braided leader hose with an inline check valve.
Specifications
- Voltage: 12 volts
- Motor: Permanent magnetic motor
- Duty cycle: 100% @ 200 PSI
- Maximum working pressure: 200 PSI
- Maximum air tank size: 10.0 gallons
- Combined maximum current draw: 44 amps
- Ingress Protection Rating: IP67
- Pump dimensions (L x W x H): 10.63" x 4.1" x 6.44"
- Net weight: 22.10 lbs
Fill rates
- 2.5 gallon tank (0 to 200 PSI): 2:20 (± 0.05)
- 2.5 gallon tank: (165 to 200 PSI): 0:35 (± 0.05)
- 10 gallon tank: (0 to 200 PSI): 4:50 (± 0.15)
- 10 gallon tank: (165 to 200 PSI): 1:15 (± 0.05)

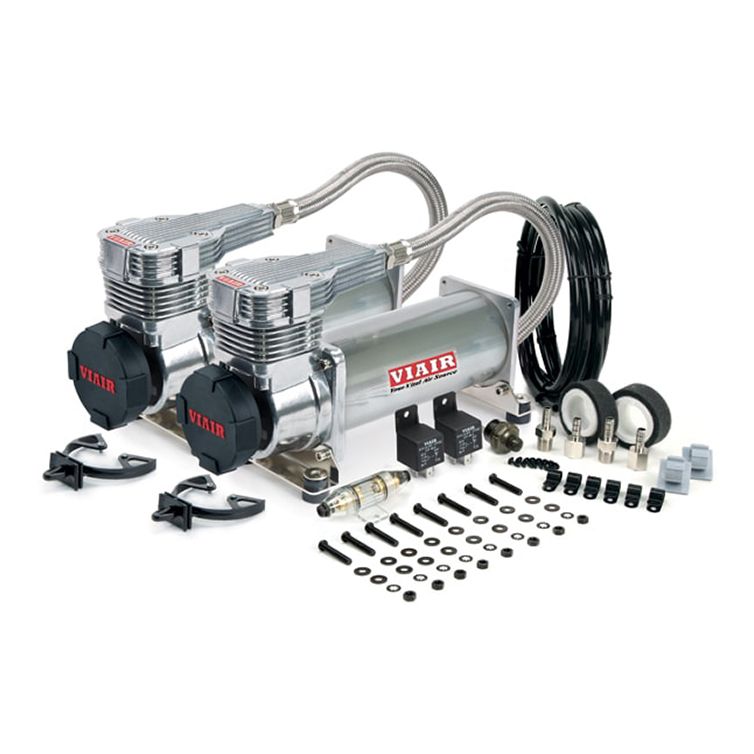

Kit includes the following:
- 2 x 485C compressors w/thermal overload protectors
- 2 x Air filter assemblies
- 2 x Viair removable filter covers
- 2 x Remote mount brackets
- 2 x Sets of remote mount fittings
- 2 x Sets of spare air filter elements
- 2 x Leader hose clips
- 6 x Air line clips with included hardware
- 8 x Sets of nuts, bolts, washers and lock washers
- 1 x Heavy duty tube style fuse holder (up to 60-amp fuse)
- 2 x 40-amp relays
- 1 x Pressure switch (165 psi on, 200 psi off)
- 2 x Stainless steel braided leader hoses with inline check valve
- 1 x Air line (for remote mount filter installation)
