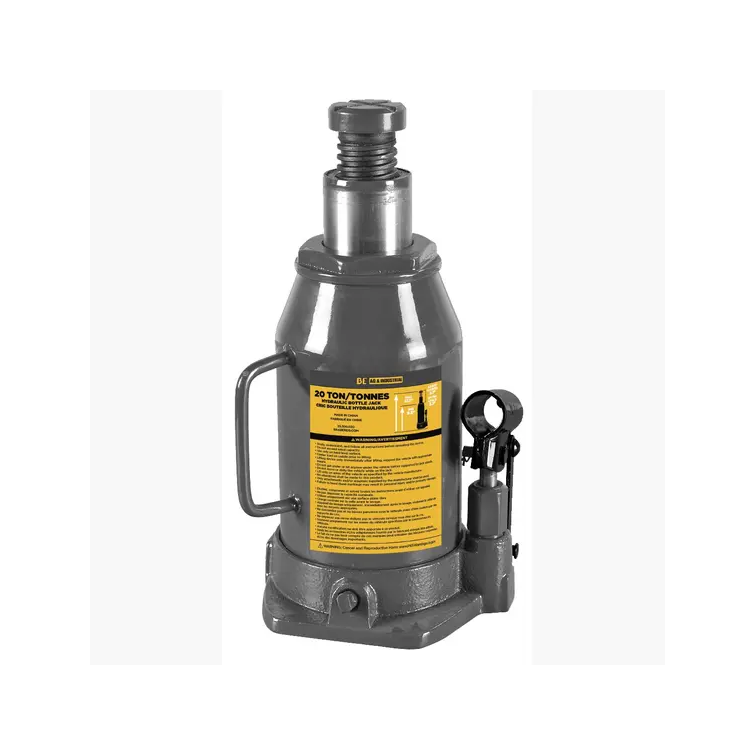

Braber 20 Ton Hydraulic Bottle Jack

The 20 Ton Hydraulic Bottle Jack delivers powerful lifting performance for automotive, industrial, and heavy-duty applications. Built with a rugged steel frame and precision hydraulic system, this jack provides stability, safety, and control when raising large vehicles or equipment. Ideal for mechanics, truck operators, and maintenance professionals who need dependable lifting power on the job.

Features:

• High Capacity: Lifts up to 20 tons, suitable for trucks, trailers, and heavy machinery.

• Heat-Treated Extension Screw: Provides low pick-up height adjustment and maximum lift height.

• Built-In Bypass Device: U.S. patented system protects hydraulics from overpumping damage.

• Forged Release Valve: Unique cross-type design ensures smooth, controlled lowering.

• Wide, Rugged Base: Delivers superior stability and strength under heavy loads.

• In-Line Pump: Simplifies jack positioning under load for efficient operation.

Specifications:

• Capacity: 20 tons

• Minimum Height: 9.5 in.

• Lifting Height: 5.3 in.

• Adjustable Screw Range: 2.3 in.

• Maximum Lift Height: 17.1 in.
