Bosch REVOLVE2000 Self-Leveling Horizontal/Vertical Rotary Laser Kit
When you see MAP, this means the manufacturer has instituted a Minimum Advertised Price, which is the lowest price we are permitted to advertise the product online. For questions about price, please contact us.
The Bosch REVOLVE2000 Self-Leveling Horizontal/Vertical Rotary Laser Kit delivers a comprehensive solution for precise outdoor and indoor leveling. Manual Dual Slope allows the user to adjust the slope angle on the laser on both the X- and Y-axes. The GRL2000-40HVK features a horizontal/vertical self-leveling laser, suitable for leveling and aligning applications. This kit contains an all-in-one hard carrying case designed to hold all included accessories. The REVOLVE2000 rotary laser delivers ±1/16" accuracy at 100' and a working range of up to 2,000' with the included receiver. The laser’s electronic self-leveling system has a disturbance monitor, which indicates to the user if tool position changes, ensuring consistent leveling accuracy on the jobsite. The laser has a red metal cage for durability. Easy to use, the kit includes an all-in-one solution includes an LR20 laser receiver with mounting bracket, aluminum tripod, RC4 remote control, WM4 wall mount and sturdy grade rod.
- Complete kit - features a laser receiver, tripod, grade rod, remote control, wall mount and all-in-one hard carrying case
- All-in-one hard carrying case - designed to hold included accessories: receiver with bracket, tripod, grade rod and more
- Manual Dual Slope - allows the user to adjust the slope angle on the laser on both the X- and Y-axes
- Electronic self-leveling - allows for easy setup and use on the job
- Disturbance monitor - indicates if tool position changes, ensuring consistent leveling accuracy
- Reliable accuracy - delivers ±1/16" accuracy at 100'
- Long working-range capability - provides up to 2,000' working range
- Laser receiver with mounting bracket - allows for easy-to-read LCD dual display and easy attachment to leveling rod
- Vertical-beam functionality - provides a vertical beam at 90° point for layout, squaring and plumb applications
- Lightweight aluminum tripod - features quick-clad release on legs and durable finish
- Robust design - features cage overmold and two large easy-to-grip carrying handles for convenience and additional drop protection
Specifications
- Product: rotary laser
- Manufacturer: Bosch
- Model: GRL2000-40HVK
- IP rating: IP 56
- Laser diode: Class 3R <5mW @ 630 ~ 670nm
- Leveling type: Self-Leveling, Up to 5°
- Material: Plastic Composite
- Mounting thread: 5/8-11
- Opertating temperature: 14°F (-10°C) to 122°F (50°C)
- Range: up to 2,000'
- Length: 7.0"
- Width: 6.7"
- Height: 7.5"
- Weight: 3.9 lbs

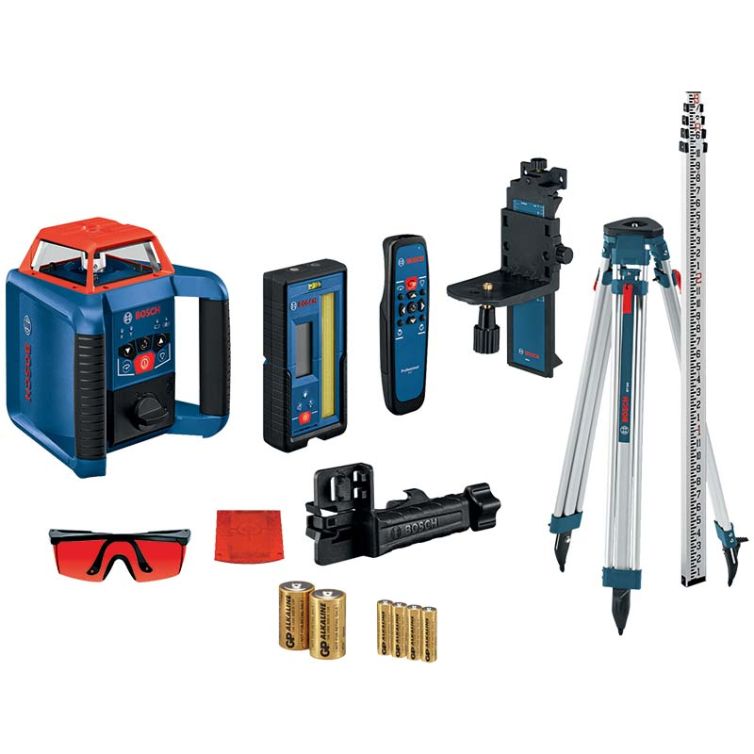

Includes
- (1) GRL2000-40HVK REVOLVE2000 Self-Leveling Horizontal/Vertical Rotary Laser
- (1) LR20 Laser Receiver with Bracket
- (1) BT160 Aluminum Contractor Tripod
- (1) GR13 13' Grade Rod
- (1) Red Laser Glasses
- (1) Red Target Plate
- (1) RC4 Remote Control
- (1) WM4 Wall Mount
- (4) AA Batteries
- (2) D Batteries
- (1) All-In-One Hard Carrying Case
