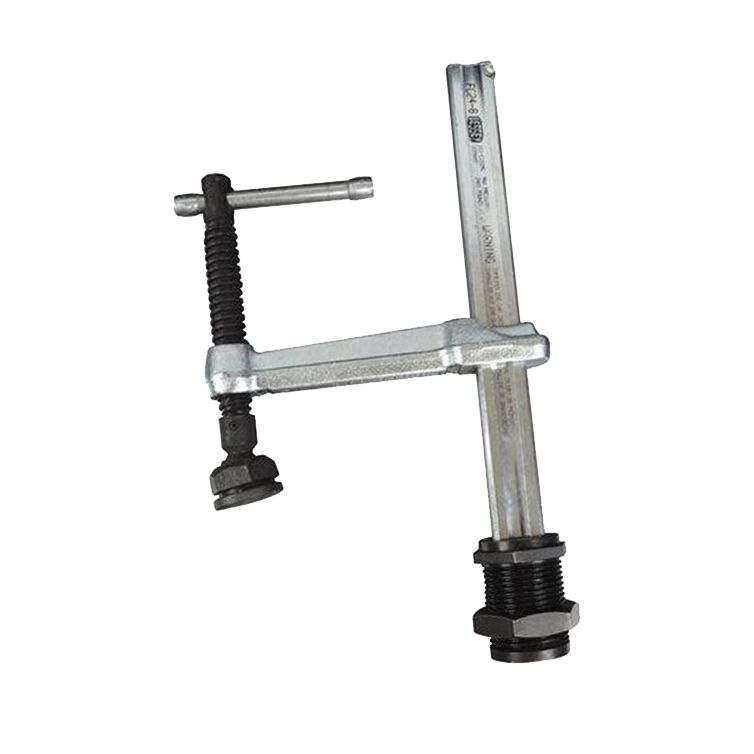

Bessey 4-1/2" Jig and Fixture Clamp

The FC24-8 Jig and Fixture Clamp by Bessey can be used three different ways: in a non-rotating fixed position, 360 degrees rotating fixed position or free-rotating removable fixture.

• Bushings allow for quick repositioning
• Pressure pad swivels up to 35 degrees
• Clamp rotates 360 degrees
• For use on welding tables with 50 mm holes

Specifications

Throat depth: 4-1/2"
Opening: 8"
Hole size: 2" (50 mm)
Bushing OD: 1-13/16"
Clamping force: 2,660 lbs
Weight: 6.45 lbs
