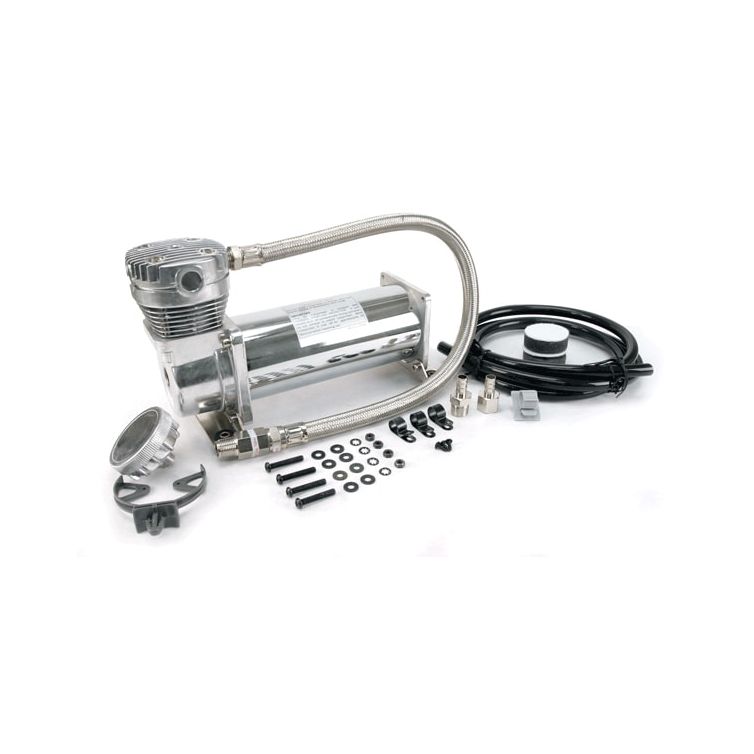

480C is a truly rated, 200 PSI-rated compressor. It features horizontal cooling fins and a trapezoidal head design, a standard 3/8” stainless steel braided leader hose with 3/8” NPT inline check valve and insulated wiring.
Features
– Thermal Overload Protector – Check Valve – Vibration Isolators – Mounting Hardware – Stainless Steel Braided Leader Hose – Air Line for Remote Mount Air Filter – Remote Mount Air Filter Assembly – (2) Replacement Air Filter Elements – Installation Instructions
Specifications
– 12-Volt – Permanent Magnetic Motor – Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI) – Max. Working Pressure: 200 PSI – Max. Air Tank Size: 5.0 Gallon – Max. 12V Amp Draw: 23-Amps – Ingress Protection Rating: IP67 – Max Ambient Temp: +158°F – Min Ambient Temp: -40°F – Dimensions: 10.87″L x 4.2″W x 6.75″H – Net Weight: 11.05 lbs.
Please Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
